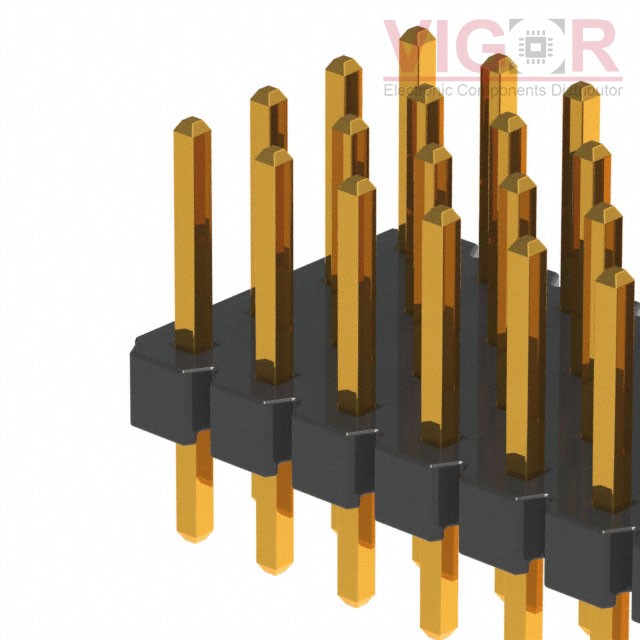

NRPN104RCCN-RC

Part No :: NRPN104RCCN-RC

Manufacturer: Sullins Connector Solutions

Description: CONN HEADER VERT 40POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: NRPN104RCCN-RC PDF

Availability: 1037 pieces

Unit Price: ~~$4.48000~~

Current price of NRPN104RCCN-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NRPN104RCCN-RC Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Discontinued at Digi-Key
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	40
Number of Rows:	4
Row Spacing - Mating:	0.079" (2.00mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.173" (4.40mm)
Contact Length - Post:	0.094" (2.40mm)
Overall Contact Length:	0.327" (8.30mm)
Insulation Height:	0.059" (1.50mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	Flash
Contact Finish - Post:	Gold
Contact Material:	Brass
Insulation Material:	Polyamide (PA6T), Nylon 6T
Features:	-
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	2A
Voltage Rating:	-
