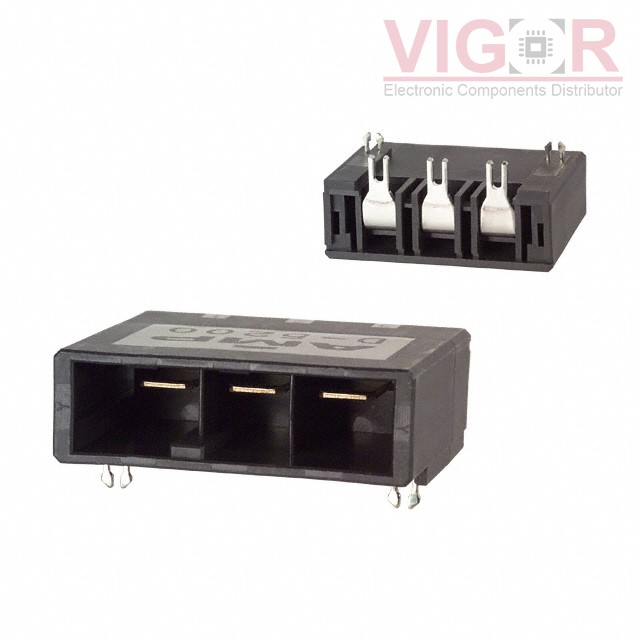

2-353081-3

Part No :: 2-353081-3

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HEADER R/A 3POS 10.16MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 2-353081-3 PDF

Availability: 0 pieces

Current price of 2-353081-3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2-353081-3 Specifications

Type	Description
Series:	Dynamic D-5200
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Tab
Pitch - Mating:	0.400" (10.16mm)
Number of Positions:	3
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	-
Contact Length - Post:	0.150" (3.81mm)
Overall Contact Length:	-
Insulation Height:	0.547" (13.90mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Thermoplastic, Polyester, Glass Filled
Features:	Board Lock
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	IP20
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	30A
Voltage Rating:	630V
