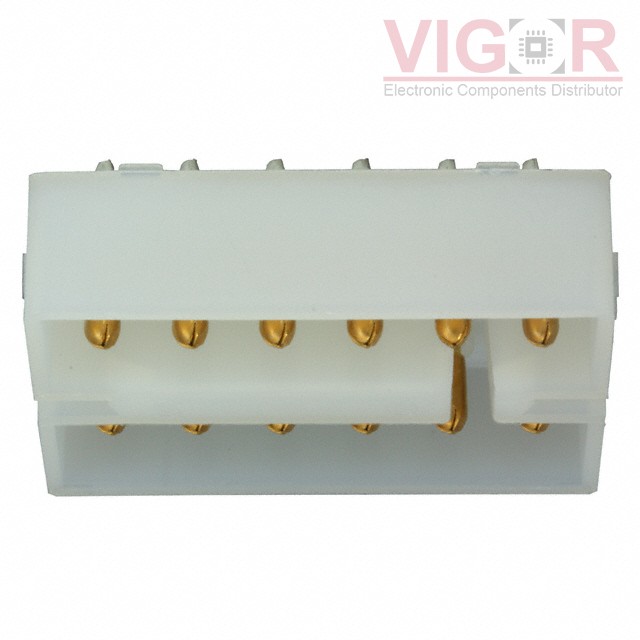

1586520-2

Part No :: 1586520-2

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HEADER VERT 12POS 5.08MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 1586520-2 PDF

Availability: 0 pieces

Current price of 1586520-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1586520-2 Specifications

Type	Description
Series:	Commercial MATE-N-LOK
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.200" (5.08mm)
Number of Positions:	12
Number of Rows:	2
Row Spacing - Mating:	0.360" (9.14mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	0.181" (4.60mm)
Contact Length - Post:	0.150" (3.81mm)
Overall Contact Length:	-
Insulation Height:	0.375" (9.53mm)
Contact Shape:	Circular
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Polyamide (PA), Nylon
Features:	-
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-2
Insulation Color:	Natural
Current Rating (Amps):	12A
Voltage Rating:	250VAC

Please confirm the specifications of the products when ordering.
