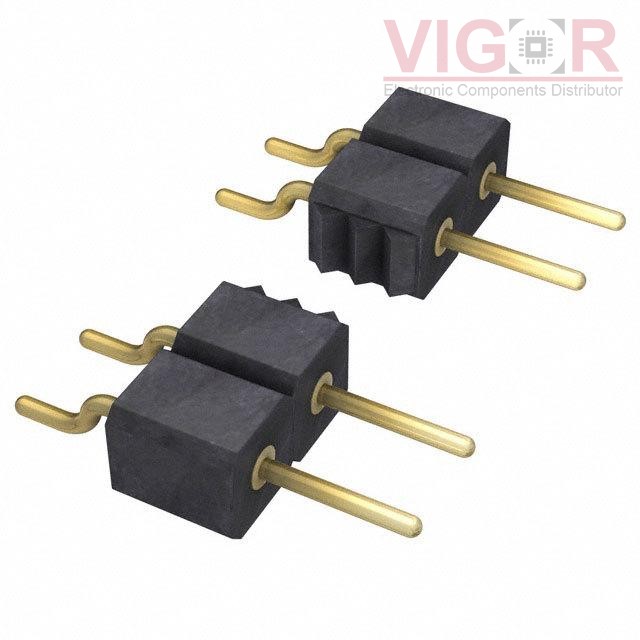

800-10-037-40-001101

Part No :: 800-10-037-40-001101

Manufacturer: Preci-Dip

Description: CONN HEADER SMD R/A 37POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 800-10-037-40-001101 PDF

Availability: 0 pieces

Current price of 800-10-037-40-001101 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

800-10-037-40-001101 Specifications

Type	Description
Series:	800
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	37
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Unshrouded
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.191" (4.85mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.100" (2.54mm)
Contact Shape:	Circular
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Contact Finish - Post:	Gold
Contact Material:	Brass
Insulation Material:	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features:	-
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	3A
Voltage Rating:	150VDC
