M50-3550642

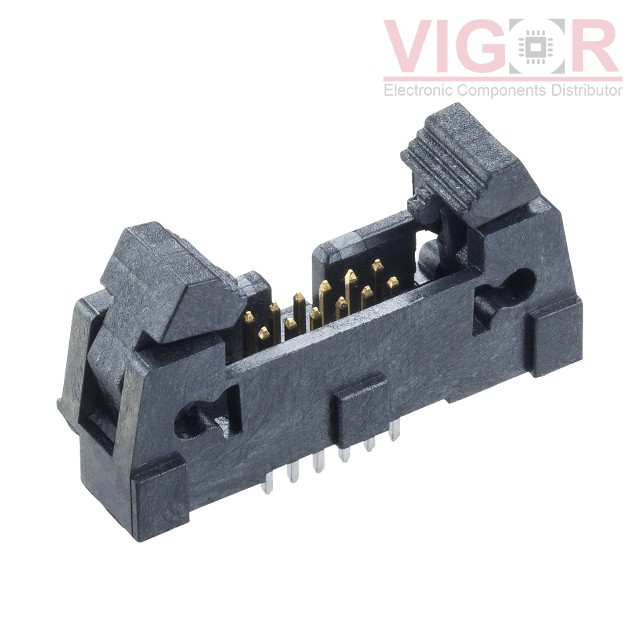

Product image
Product thumb
Part No :

M50-3550642

Manufacturer
Harwin
VIGOR # :

3044928

Description
CONN HEADER VERT 12POS 1.27MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
M50-3550642 PDF
Country of origin
-
Date code
-
ads
M50-3550642 Specifications
Type Description
Series:Archer M50
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:12
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Lock/Eject Hooks
Contact Length - Mating:0.120" (3.05mm)
Contact Length - Post:0.107" (2.71mm)
Overall Contact Length:0.351" (8.92mm)
Insulation Height:0.325" (8.25mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
Features:Keying Slot
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):1.75A per Contact
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 340
Shipped from
HK warehouse
Expected Shipping Date
Apr 03 - Apr 07 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.2500 $2.25
26 $1.9200 $49.92
104 $1.7531 $182.32
520 $1.4609 $759.68
1014 $1.2522 $1 269.75
5018 $1.1103 $5 571.49

Current price of M50-3550642 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
