5-103168-3

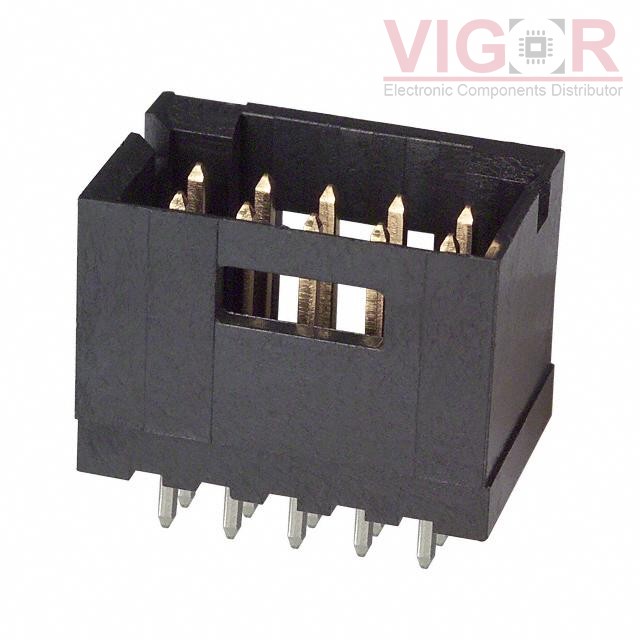

Product image
Product thumb
Part No :

5-103168-3

Manufacturer
TE Connectivity AMP Connectors
VIGOR # :

3045398

Description
CONN HEADER VERT 10POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
5-103168-3 PDF
Country of origin
-
Date code
-
ads
5-103168-3 Specifications
Type Description
Series:AMPMODU Mod II
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:10
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:0.318" (8.08mm)
Contact Length - Post:0.125" (3.18mm)
Overall Contact Length:0.533" (13.55mm)
Insulation Height:0.440" (11.18mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Thermoplastic
Features:-
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 1073
Shipped from
HK warehouse
Expected Shipping Date
Jan 16 - Jan 20 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.91 $2.91
10 $2.79 $27.93
160 $2.33 $372.32
640 $1.98 $1 265.91
1120 $1.69 $1 889.55
5120 $1.51 $7 744.36

Current price of 5-103168-3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
