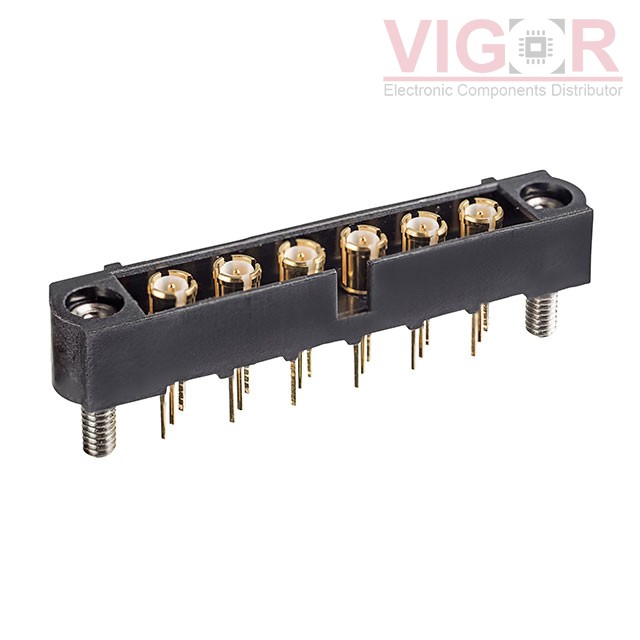

M80-MV312M3-06

Part No :: M80-MV312M3-06

Manufacturer: Harwin

Description: CONN HEADER VERT 6POS 4MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: M80-MV312M3-06 PDF

Availability: 9 pieces

Unit Price: ~~$65.01000~~

Current price of M80-MV312M3-06 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

M80-MV312M3-06 Specifications

Type	Description
Series:	Datamate Coax
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin, Coaxial
Pitch - Mating:	0.157" (4.00mm)
Number of Positions:	6 (Coax)
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Threaded
Contact Length - Mating:	-
Contact Length - Post:	0.177" (4.50mm)
Overall Contact Length:	-
Insulation Height:	0.220" (5.60mm)
Contact Shape:	Circular
Contact Finish - Mating:	-
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	-
Contact Material:	Copper Alloy
Insulation Material:	Polyphenylene Sulfide (PPS), Glass Filled
Features:	Mating Flange, Mounting Flange
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
