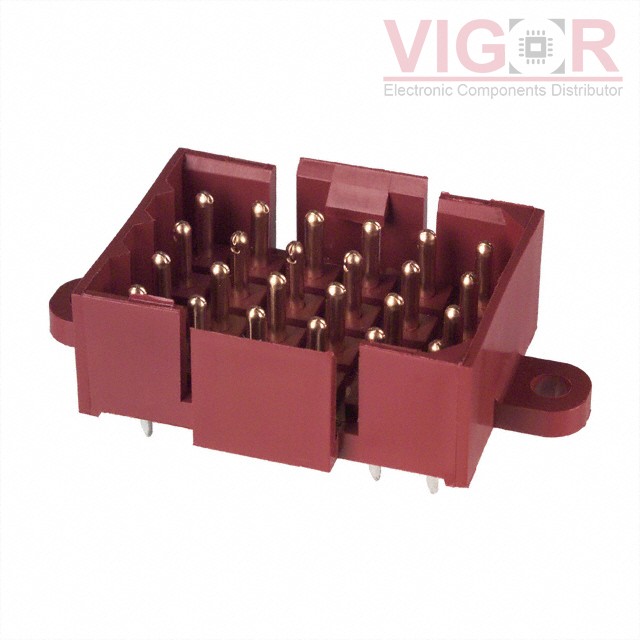

1-206763-3

Part No :: 1-206763-3

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HEADER VERT 24POS 5MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 1-206763-3 PDF

Availability: 869 pieces

Unit Price: ~~$21.13000~~

Current price of 1-206763-3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1-206763-3 Specifications

Type	Description
Series:	Metrimate
Package:	Tray
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.197" (5.00mm)
Number of Positions:	24
Number of Rows:	4
Row Spacing - Mating:	0.197" (5.00mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Latch Lock
Contact Length - Mating:	0.200" (5.08mm)
Contact Length - Post:	0.181" (4.60mm)
Overall Contact Length:	-
Insulation Height:	0.464" (11.79mm)
Contact Shape:	Circular
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyamide (PA), Nylon
Features:	Mounting Flange
Operating Temperature:	-55°C ~ 130°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black, Red
Current Rating (Amps):	7.5A
Voltage Rating:	600V
