0039294129

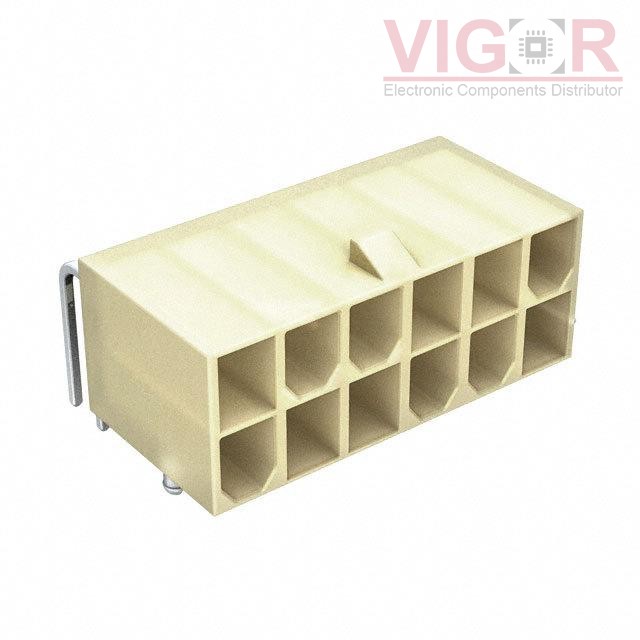

Product image
Product thumb
Part No :

0039294129

Manufacturer
Woodhead - Molex
VIGOR # :

3047010

Description
CONN HEADER R/A 12POS 4.2MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
0039294129 PDF
Country of origin
-
Date code
-
ads
0039294129 Specifications
Type Description
Series:Mini-Fit Jr 5569
Package:Bulk
Part Status:Obsolete
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.165" (4.20mm)
Number of Positions:12
Number of Rows:2
Row Spacing - Mating:0.165" (4.20mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.142" (3.60mm)
Overall Contact Length:-
Insulation Height:0.378" (9.60mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA66), Nylon 6/6
Features:Mounting Flange
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 54
Shipped from
HK warehouse
Expected Shipping Date
Jan 01 - Jan 05 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $5.43 $5.43
10 $5.21 $52.07
100 $4.34 $433.95
500 $3.69 $1 844.29
1000 $3.15 $3 146.14

Current price of 0039294129 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

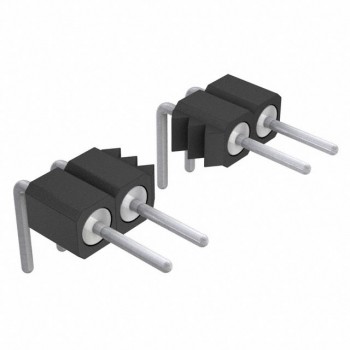

830-80-012-20-001101

830-80-012-20-001101

CONN HEADER R/A 12POS 2MM

FTSH-120-03-L-DV-A

FTSH-120-03-L-DV-A

CONN HEADER SMD 40POS 1.27MM

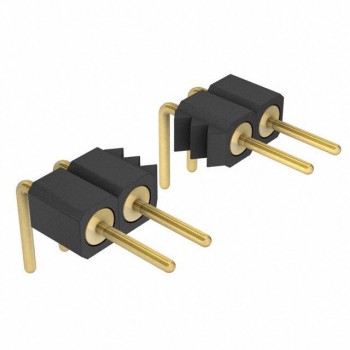

830-10-033-20-001101
