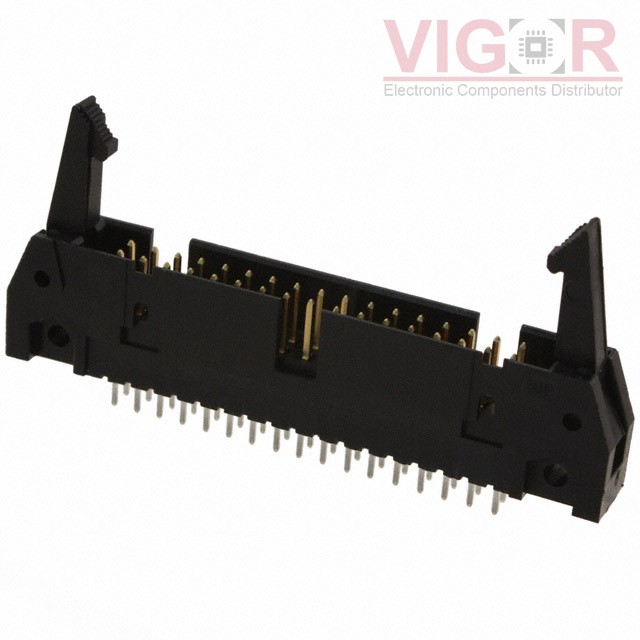

102321-8

Part No :: 102321-8

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HEADER VERT 34POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 102321-8 PDF

Availability: 52 pieces

Unit Price: ~~$8.18000~~

Current price of 102321-8 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

102321-8 Specifications

Type	Description
Series:	AMP-Latch
Package:	Tray
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	34
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Latch Lock/Eject Hooks, Long
Contact Length - Mating:	0.240" (6.10mm)
Contact Length - Post:	0.155" (3.94mm)
Overall Contact Length:	0.684" (17.37mm)
Insulation Height:	0.549" (13.94mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold or Gold-Palladium
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	Tin-Lead
Contact Material:	-
Insulation Material:	-
Features:	Keying Slot, Mounting Flange
Operating Temperature:	-65°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	1A per Contact
Voltage Rating:	250VAC
