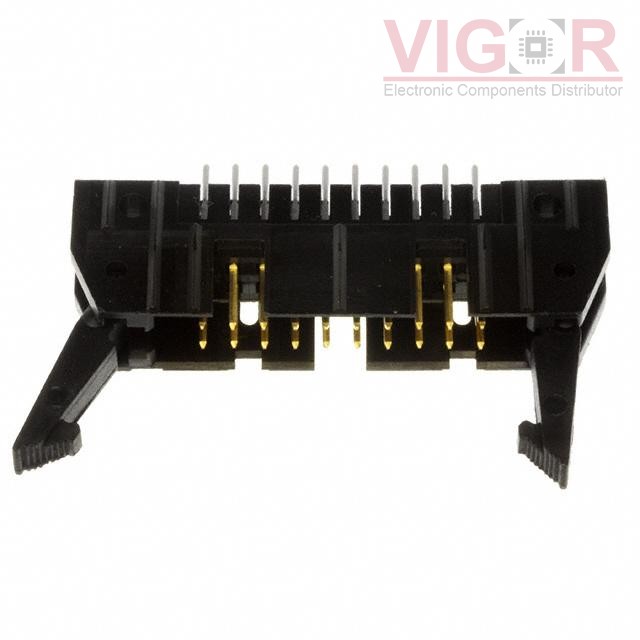

| Type | Description |
|---|---|
| Series: | AMP-Latch |
| Package: | Tray |
| Part Status: | Active |
| Connector Type: | Header |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.100" (2.54mm) |
| Number of Positions: | 20 |
| Number of Rows: | 2 |
| Row Spacing - Mating: | 0.100" (2.54mm) |
| Number of Positions Loaded: | All |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Mounting Type: | Through Hole |
| Termination: | Solder |
| Fastening Type: | Latch Lock/Eject Hooks, Long |
| Contact Length - Mating: | 0.240" (6.10mm) |
| Contact Length - Post: | 0.155" (3.94mm) |
| Overall Contact Length: | 0.684" (17.37mm) |
| Insulation Height: | 0.549" (13.94mm) |
| Contact Shape: | Square |
| Contact Finish - Mating: | Gold or Gold-Palladium |
| Contact Finish Thickness - Mating: | 30.0µin (0.76µm) |
| Contact Finish - Post: | Tin-Lead |
| Contact Material: | - |
| Insulation Material: | - |
| Features: | Keying Slot, Mounting Flange |
| Operating Temperature: | -65°C ~ 105°C |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Black |
| Current Rating (Amps): | 1A per Contact |
| Voltage Rating: | 250VAC |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 42 | ||
| 126 | ||
| 504 | ||
| 1008 |
Current price of 102321-4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
CONN HEADER VERT 24POS 2.54MM
CONN HEADER SMD 10POS 2MM

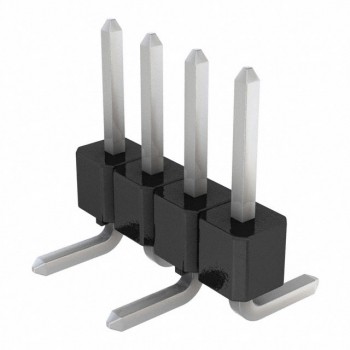

CONN HEADER SMD 4POS 2.54MM
