86130162114345E1LF

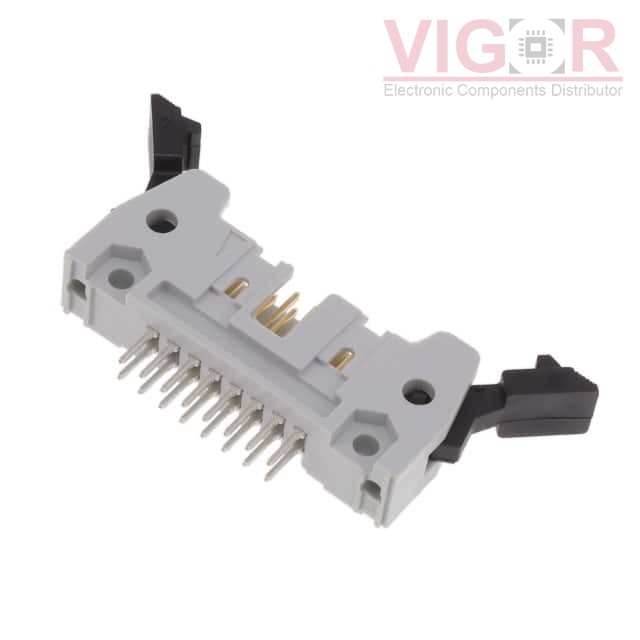

Product image
Product thumb
Part No :

86130162114345E1LF

Manufacturer
Storage & Server IO (Amphenol ICC)
VIGOR # :

3047338

Description
CONN HEADER VERT 16POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
86130162114345E1LF PDF
Country of origin
-
Date code
-
ads
86130162114345E1LF Specifications
Type Description
Series:Quickie™
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:16
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Lock/Eject Hooks, Long
Contact Length - Mating:0.240" (6.10mm)
Contact Length - Post:0.171" (4.35mm)
Overall Contact Length:0.713" (18.10mm)
Insulation Height:0.693" (17.60mm)
Contact Shape:Circular
Contact Finish - Mating:Gold or Gold-Palladium
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polybutylene Terephthalate (PBT)
Features:Keying Slot
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Gray
Current Rating (Amps):-
Voltage Rating:250V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 721
Shipped from
HK warehouse
Expected Shipping Date
Jan 31 - Feb 04 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.77 $0.77
84 $0.57 $48.21
168 $0.55 $92.40
504 $0.48 $241.04
1008 $0.39 $397.73
5040 $0.35 $1 747.57
10080 $0.32 $3 254.03

Current price of 86130162114345E1LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
TSW-110-26-T-D

TSW-110-26-T-D

CONN HEADER VERT 20POS 2.54MM

861400021YO2711LF

861400021YO2711LF

CONN HEADER VERT 3POS 2.54MM

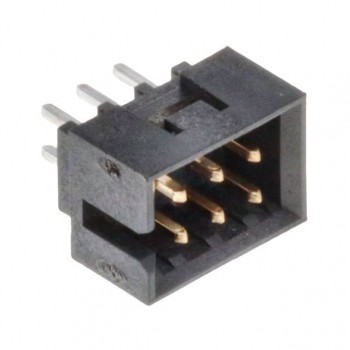

0878310643
