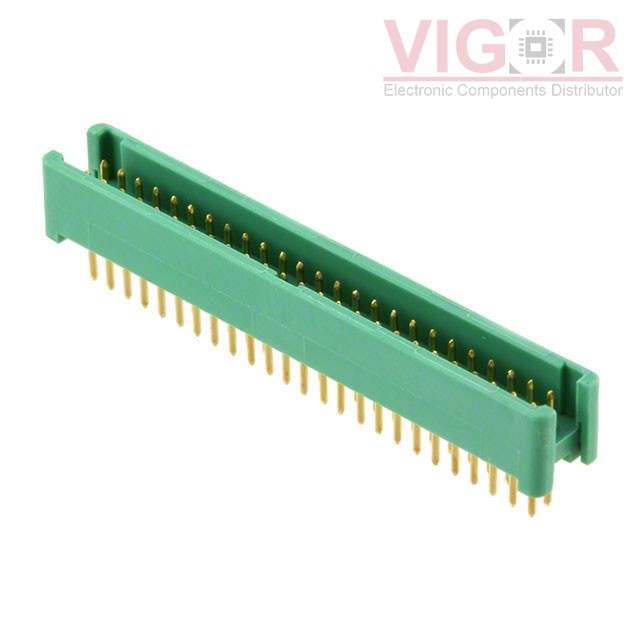

| Type | Description |
|---|---|
| Series: | Gecko |
| Package: | Bulk |
| Part Status: | Active |
| Connector Type: | Header |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.049" (1.25mm) |
| Number of Positions: | 50 |
| Number of Rows: | 2 |
| Row Spacing - Mating: | 0.049" (1.25mm) |
| Number of Positions Loaded: | All |
| Style: | Board to Board or Cable |
| Shrouding: | Shrouded - 4 Wall |
| Mounting Type: | Through Hole |
| Termination: | Solder |
| Fastening Type: | Push-Pull |
| Contact Length - Mating: | - |
| Contact Length - Post: | 0.118" (3.00mm) |
| Overall Contact Length: | - |
| Insulation Height: | 0.193" (4.90mm) |
| Contact Shape: | Circular |
| Contact Finish - Mating: | Gold |
| Contact Finish Thickness - Mating: | 8.00µin (0.203µm) |
| Contact Finish - Post: | - |
| Contact Material: | Phosphor Bronze |
| Insulation Material: | Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free |
| Features: | Board Lock, Pick and Place |
| Operating Temperature: | -65°C ~ 150°C |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Green |
| Current Rating (Amps): | 2A per Contact |
| Voltage Rating: | - |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 10 | ||
| 100 | ||
| 500 | ||
| 1000 |
Current price of G125-MV15005L0P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
