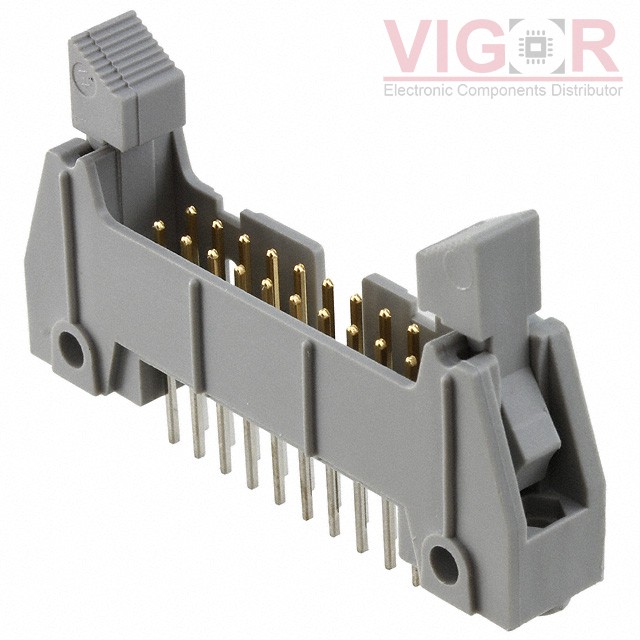

3428-6202

Part No :: 3428-6202

Manufacturer: 3M

VIGOR # :: 3047650

Description: CONN HEADER VERT 20POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 3428-6202 PDF

Country of origin: -

Date code: -

3428-6202 Specifications

Type	Description
Series:	3000
Package:	Bulk
Part Status:	Obsolete
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	20
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Latch Lock/Eject Hooks, Short
Contact Length - Mating:	0.240" (6.10mm)
Contact Length - Post:	0.112" (2.84mm)
Overall Contact Length:	0.652" (16.56mm)
Insulation Height:	0.680" (17.27mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	Tin-Lead
Contact Material:	Copper Alloy
Insulation Material:	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Features:	Keying Slot, Mounting Flange
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	1A
Voltage Rating:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 568

Shipped from

HK warehouse

Expected Shipping Date

Jan 10 - Jan 14 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$4.77~~	~~$4.77~~
10	~~$4.58~~	~~$45.79~~
100	~~$3.82~~	~~$381.60~~
500	~~$3.24~~	~~$1 621.80~~
1000	~~$2.77~~	~~$2 766.60~~

Current price of 3428-6202 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
