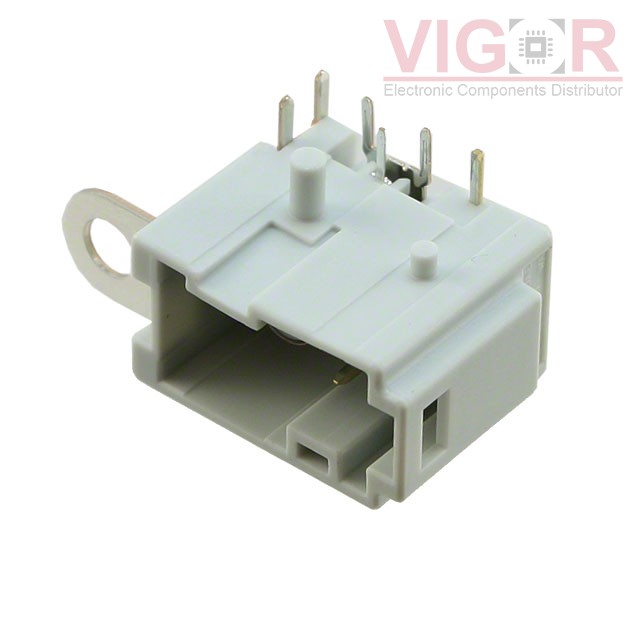

CE2S111C01

Part No :: CE2S111C01

Manufacturer: JAE Electronics

VIGOR # :: 3047724

Description: CONN HEADER R/A 2POS

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: CE2S111C01 PDF

Current price of CE2S111C01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CE2S111C01 Specifications

Type	Description
Series:	CE2
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Female Socket, Coaxial; Male Pin, Power
Pitch - Mating:	-
Number of Positions:	2 (1 Coax + 1 Power)
Number of Rows:	-
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	-
Contact Length - Post:	0.118" (3.00mm)
Overall Contact Length:	-
Insulation Height:	0.394" (10.00mm)
Contact Shape:	Circular
Contact Finish - Mating:	Gold, Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Polybutylene Terephthalate (PBT), Glass Filled
Features:	Board Guide, Bracket
Operating Temperature:	-30°C ~ 70°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Gray
Current Rating (Amps):	-
Voltage Rating:	-
