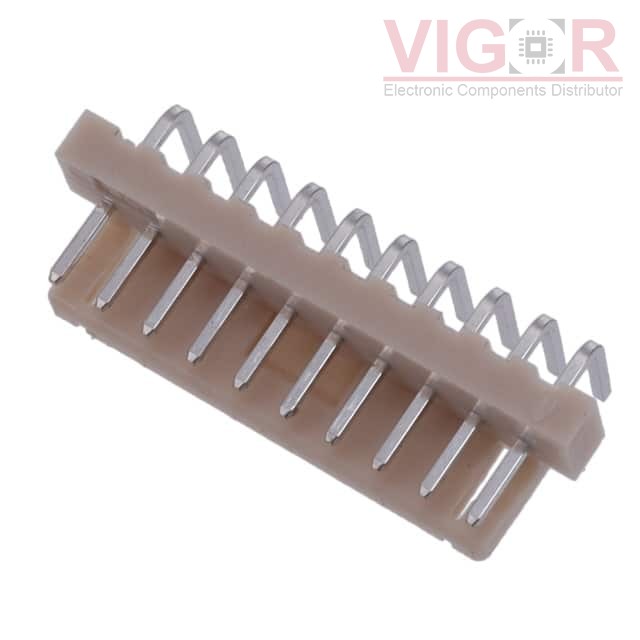

DF1-10P-2.5DS(05)

Part No :: DF1-10P-2.5DS(05)

Manufacturer: Hirose

Description: CONN HEADER R/A 10POS 2.5MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: DF1-10P-2.5DS(05) PDF

Availability: 1072 pieces

Unit Price: ~~$0.70000~~

Current price of DF1-10P-2.5DS(05) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DF1-10P-2.5DS(05) Specifications

Type	Description
Series:	DF1
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.098" (2.50mm)
Number of Positions:	10
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 1 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Friction Lock
Contact Length - Mating:	0.177" (4.50mm)
Contact Length - Post:	0.118" (3.00mm)
Overall Contact Length:	-
Insulation Height:	0.236" (6.00mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	39.4µin (1.00µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyamide (PA), Nylon
Features:	-
Operating Temperature:	-30°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Brown
Current Rating (Amps):	3A
Voltage Rating:	250V
