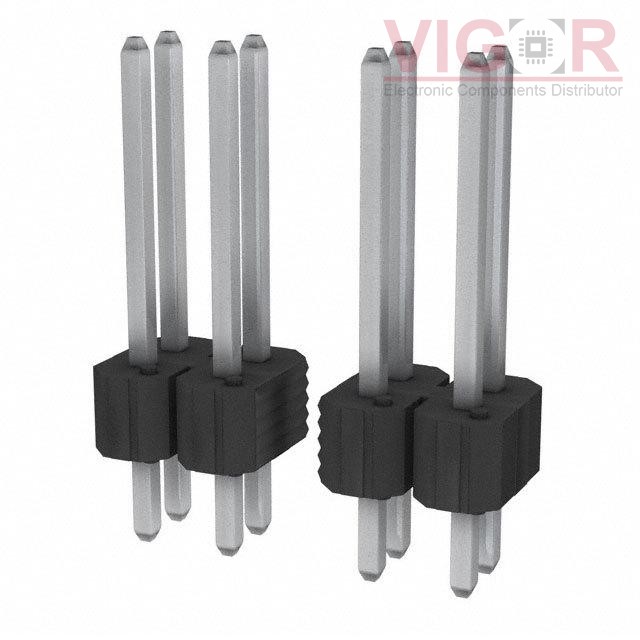

86837-472HLF

Part No :: 86837-472HLF

Manufacturer: Storage & Server IO (Amphenol ICC)

Description: CONN HEADER VERT 72POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 86837-472HLF PDF

Availability: 0 pieces

Unit Price: ~~$1.27375~~

Current price of 86837-472HLF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

86837-472HLF Specifications

Type	Description
Series:	BERGSTIK® II
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	72
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.380" (9.65mm)
Contact Length - Post:	0.120" (3.05mm)
Overall Contact Length:	0.600" (15.24mm)
Insulation Height:	0.100" (2.54mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	100.0µin (2.54µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	-
Features:	-
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
