0026482080

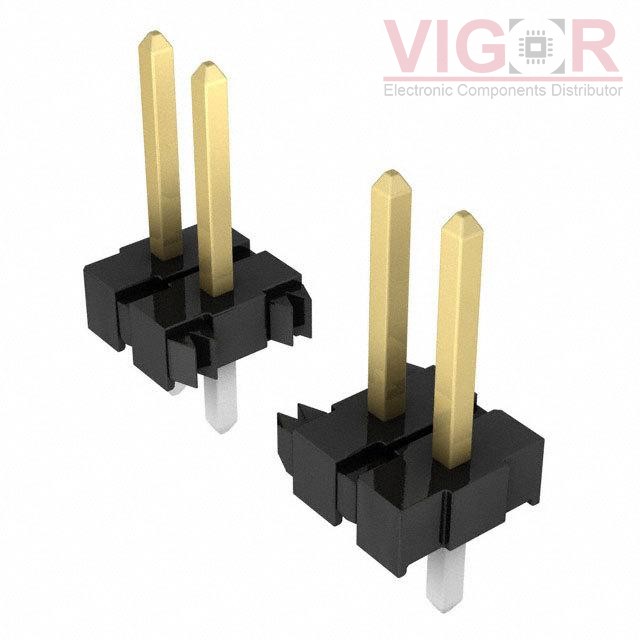

Image is for reference,
please contact us to get the real picture

Part No :: 0026482080

Manufacturer: Woodhead - Molex

Description: CONN HEADER VERT 8POS 3.96MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 0026482080 PDF

Availability: 0 pieces

Unit Price: ~~$5.27000~~

Current price of 0026482080 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0026482080 Specifications

Type	Description
Series:	KK396, 41661
Package:	Bulk
Part Status:	Active
Connector Type:	Header, Breakaway
Contact Type:	Male Pin
Pitch - Mating:	0.156" (3.96mm)
Number of Positions:	8
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.590" (14.99mm)
Contact Length - Post:	0.172" (4.37mm)
Overall Contact Length:	0.890" (22.61mm)
Insulation Height:	0.128" (3.25mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	20.0µin (0.51µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyester, Glass Filled
Features:	-
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
