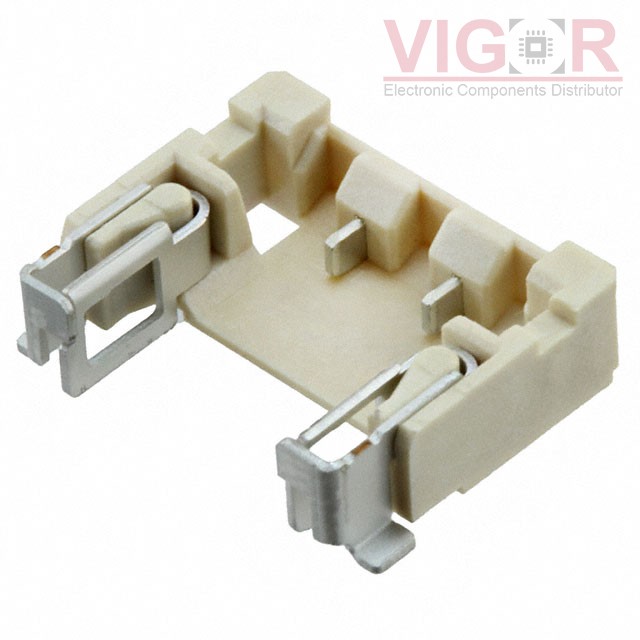

ES9P002VFZR1600

Part No :: ES9P002VFZR1600

Manufacturer: JAE Electronics

VIGOR # :: 3051282

Description: CONN HEADER SMD R/A 2POS 3MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: ES9P002VFZR1600 PDF

Current price of ES9P002VFZR1600 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ES9P002VFZR1600 Specifications

Type	Description
Series:	ES9
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Plug
Contact Type:	Male Blade
Pitch - Mating:	0.118" (3.00mm)
Number of Positions:	2
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 3 Wall
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Spring Lock
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.118" (3.00mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	Solder Retention
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Ivory
Current Rating (Amps):	4A
Voltage Rating:	300V

Please confirm the specifications of the products when ordering.
