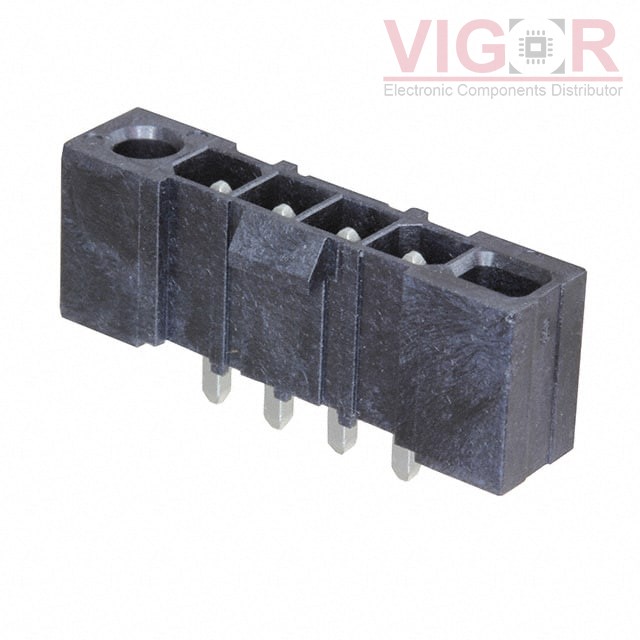

IPBT-104-H1-T-S-GP

Image is for reference,
please contact us to get the real picture

Part No :: IPBT-104-H1-T-S-GP

Manufacturer: Samtec, Inc.

Description: CONN HEADER VERT 4POS 4.20MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: IPBT-104-H1-T-S-GP PDF

Availability: 490 pieces

Unit Price: ~~$1.85000~~

Current price of IPBT-104-H1-T-S-GP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IPBT-104-H1-T-S-GP Specifications

Type	Description
Series:	Power Mate® IPBT
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.165" (4.20mm)
Number of Positions:	4
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	0.260" (6.60mm)
Contact Length - Post:	0.130" (3.30mm)
Overall Contact Length:	0.510" (12.95mm)
Insulation Height:	0.380" (9.65mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	Mating Flange
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	400VAC, 565VDC
