G125-MH10805M3-1AD1ADP

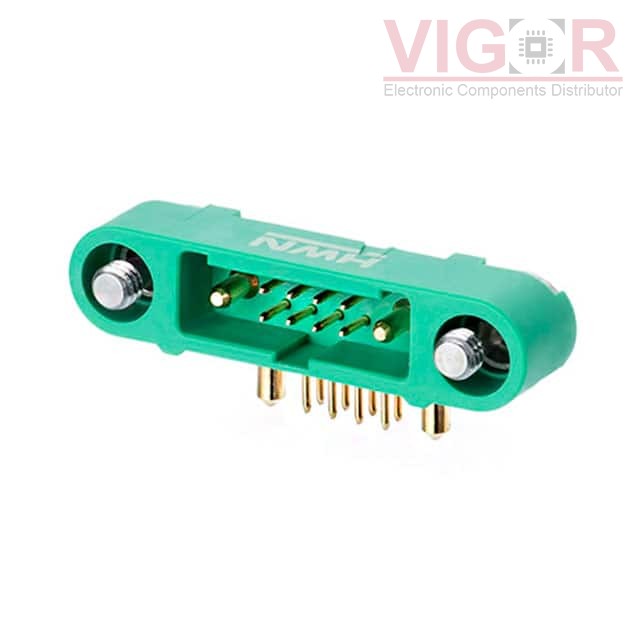

Image is for reference,
please contact us to get the real picture

Part No :: G125-MH10805M3-1AD1ADP

Manufacturer: Harwin

Description: CONN HDR 2PWR 8SIG PCB VERT

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: G125-MH10805M3-1AD1ADP PDF

Availability: 48 pieces

Unit Price: ~~$57.20000~~

Current price of G125-MH10805M3-1AD1ADP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

G125-MH10805M3-1AD1ADP Specifications

Type	Description
Series:	Gecko MT
Package:	Strip
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.049" (1.25mm)
Number of Positions:	10 (8 + 2 Power)
Number of Rows:	2
Row Spacing - Mating:	0.049" (1.25mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Screw Lock
Contact Length - Mating:	-
Contact Length - Post:	0.130" (3.30mm)
Overall Contact Length:	-
Insulation Height:	0.207" (5.25mm)
Contact Shape:	Circular
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Gold
Contact Material:	Phosphor Bronze
Insulation Material:	Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features:	Jackscrews, Mating Flange, Pick and Place, Polarizing Key
Operating Temperature:	-65°C ~ 150°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Green
Current Rating (Amps):	2A, 10A
Voltage Rating:	450V
