TMMS-130-01-LM-Q-FS

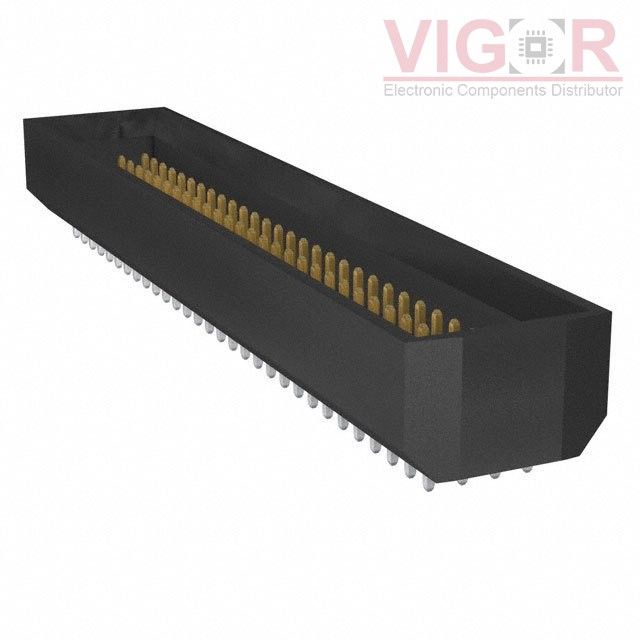

Image is for reference,
please contact us to get the real picture

Part No :: TMMS-130-01-LM-Q-FS

Manufacturer: Samtec, Inc.

Description: CONN HEADER VERT 120POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: TMMS-130-01-LM-Q-FS PDF

Availability: 0 pieces

Unit Price: ~~$19.28000~~

Current price of TMMS-130-01-LM-Q-FS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TMMS-130-01-LM-Q-FS Specifications

Type	Description
Series:	TMMS
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	120
Number of Rows:	4
Row Spacing - Mating:	0.079" (2.00mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.130" (3.30mm)
Contact Length - Post:	0.113" (2.87mm)
Overall Contact Length:	0.302" (7.67mm)
Insulation Height:	0.299" (7.60mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	-
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
