TFM-110-31-L-D-A

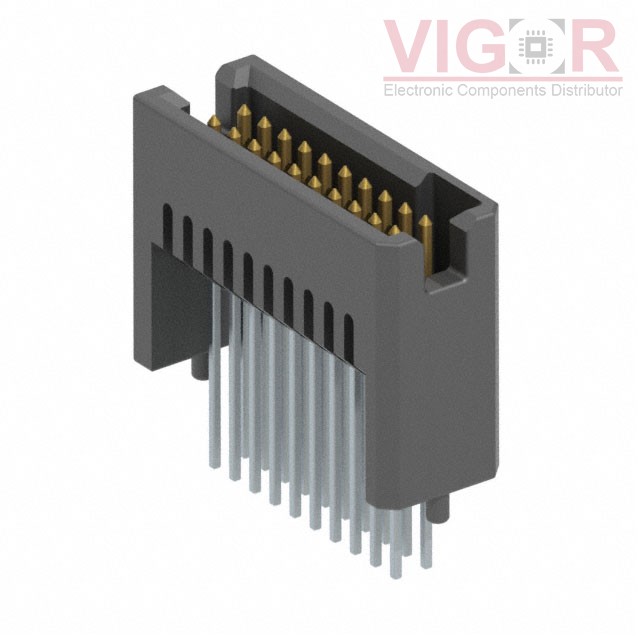

Image is for reference,
please contact us to get the real picture

Part No :: TFM-110-31-L-D-A

Manufacturer: Samtec, Inc.

Description: CONN HEADER VERT 20POS 1.27MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: TFM-110-31-L-D-A PDF

Availability: 44 pieces

Unit Price: ~~$5.00000~~

Current price of TFM-110-31-L-D-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TFM-110-31-L-D-A Specifications

Type	Description
Series:	Tiger Eye™ TFM
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.050" (1.27mm)
Number of Positions:	20
Number of Rows:	2
Row Spacing - Mating:	0.050" (1.27mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.139" (3.53mm)
Contact Length - Post:	0.080" (2.03mm)
Overall Contact Length:	-
Insulation Height:	0.435" (11.05mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	15.0µin (0.38µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	Board Guide
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	2.9A per Contact
Voltage Rating:	275VAC
