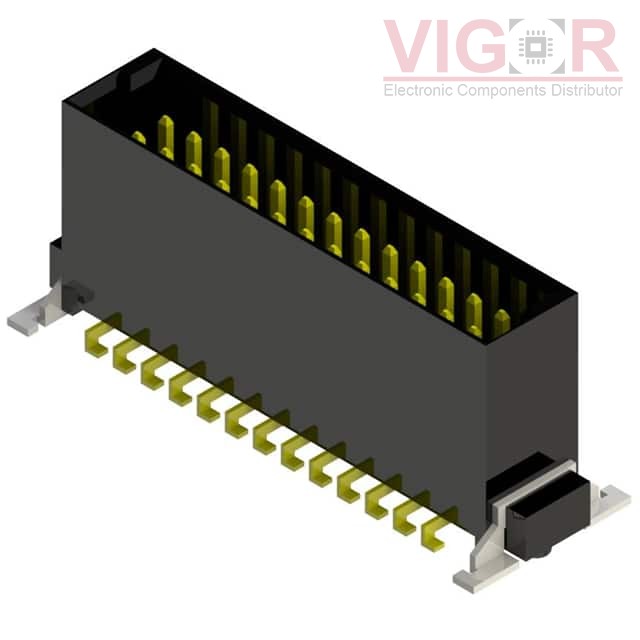

SHM-506-D-02-T-LF

Part No :: SHM-506-D-02-T-LF

Manufacturer: Major League Electronics

VIGOR # :: 3054251

Description: SHROUDED MALE CONNECTOR VERTICAL

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: SHM-506-D-02-T-LF PDF

Country of origin: -

Date code: -

SHM-506-D-02-T-LF Specifications

Type	Description
Series:	SHM-5
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.050" (1.27mm)
Number of Positions:	12
Number of Rows:	2
Row Spacing - Mating:	0.050" (1.27mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.157" (4.00mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.264" (6.70mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	Board Guide, Solder Retention
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	-
Current Rating (Amps):	0.8A
Voltage Rating:	-
