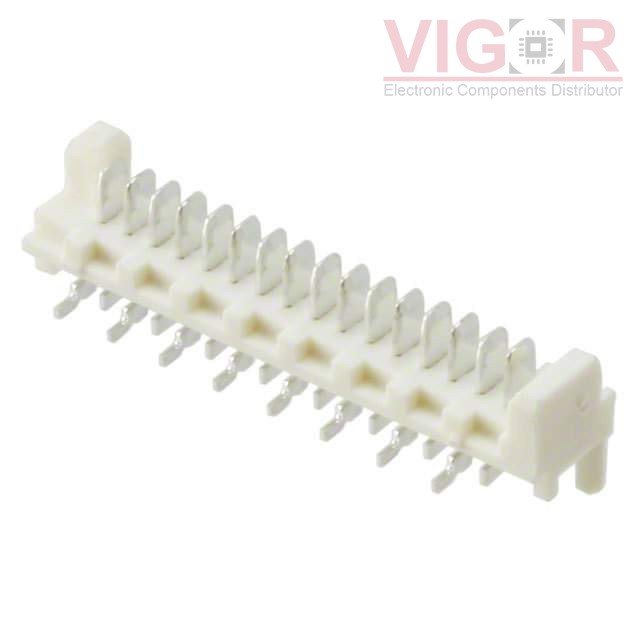

Product image
Product thumb
Part No :

0908140816

Manufacturer
Woodhead - Molex
VIGOR # :

3054277

Description
CONN HEADER SMD 16POS 1.27MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
0908140816 PDF
Country of origin
-
Date code
-
ads
0908140816 Specifications
Type Description
Series:Picoflex PF-50 90814
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Blade
Pitch - Mating:0.050" (1.27mm)
Number of Positions:16
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 2 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.085" (2.15mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.161" (4.10mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:118.1µin (3.00µm)
Contact Finish - Post:Tin
Contact Material:Cartridge Brass
Insulation Material:Polyamide (PA), Nylon, Glass Filled
Features:Board Guide
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):1.2A
Voltage Rating:250V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.2200 $1.22
22 $1.0750 $23.65
110 $0.9273 $102.00
506 $0.7587 $383.90
1012 $0.6744 $682.49
5016 $0.5901 $2 959.94
10010 $0.5606 $5 611.61

Current price of 0908140816 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
DF13-4P-1.25H(75)

DF13-4P-1.25H(75)

CONN HEADER SMD R/A 4POS 1.25MM

TSM-113-02-L-DV-A-TR

TSM-113-02-L-DV-A-TR

CONN HEADER SMD 26POS 2.54MM

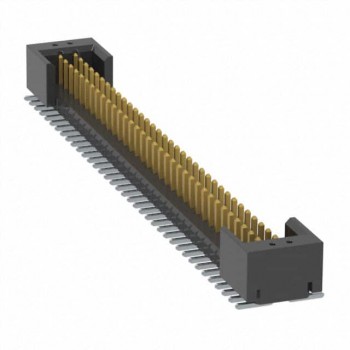

FTM-133-02-F-DV-S
