1718130009

Part No :: 1718130009

Manufacturer: Woodhead - Molex

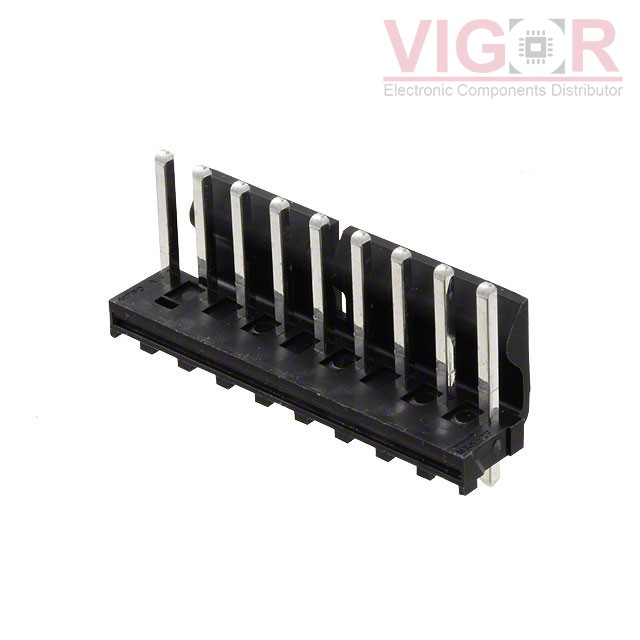

Description: CONN HEADER VERT 9POS 3.96MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 1718130009 PDF

Availability: 4333 pieces

Unit Price: ~~$1.12000~~

Current price of 1718130009 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1718130009 Specifications

Type	Description
Series:	KK396, 171813
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.156" (3.96mm)
Number of Positions:	9
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 1 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Friction Lock
Contact Length - Mating:	0.448" (11.38mm)
Contact Length - Post:	0.093" (2.35mm)
Overall Contact Length:	0.671" (17.05mm)
Insulation Height:	0.446" (11.33mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	60.0µin (1.52µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyamide (PA), Nylon
Features:	-
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-2
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
