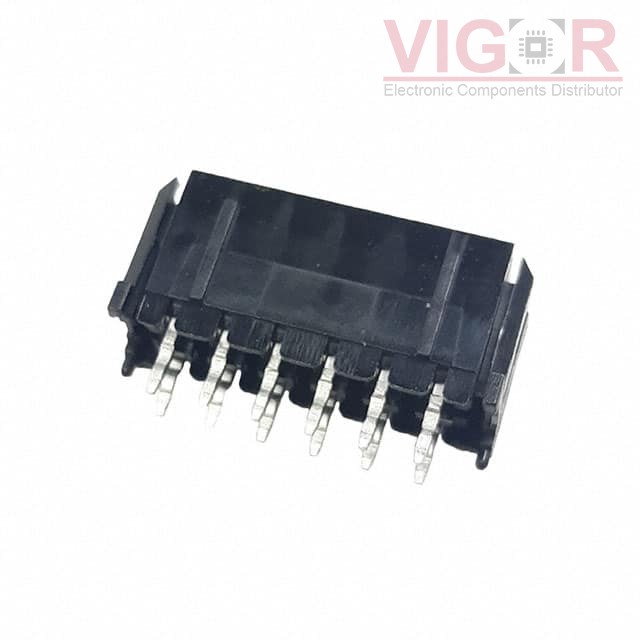

10132450-1221GLF

Part No :: 10132450-1221GLF

Manufacturer: Storage & Server IO (Amphenol ICC)

VIGOR # :: 3055443

Description: CONN HEADER VERT 12POS 3MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 10132450-1221GLF PDF

Current price of 10132450-1221GLF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

10132450-1221GLF Specifications

Type	Description
Series:	Minitek® Pwr 3.0 High Current
Package:	Tray
Part Status:	Active
Connector Type:	Plug
Contact Type:	Male Pin
Pitch - Mating:	0.118" (3.00mm)
Number of Positions:	12
Number of Rows:	2
Row Spacing - Mating:	0.118" (3.00mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Kinked Pin, Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	-
Contact Length - Post:	0.126" (3.20mm)
Overall Contact Length:	-
Insulation Height:	0.390" (9.91mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Polyamide (PA9T), Nylon 9T
Features:	Board Guide, Glow Wire Compliant
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	250V

Please confirm the specifications of the products when ordering.
