| Type | Description |
|---|---|
| Series: | C-Grid 71308 |
| Package: | Tube |
| Part Status: | Active |
| Connector Type: | Header, Breakaway |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.100" (2.54mm) |
| Number of Positions: | 54 |
| Number of Rows: | 2 |
| Row Spacing - Mating: | 0.100" (2.54mm) |
| Number of Positions Loaded: | All |
| Style: | Board to Board or Cable |
| Shrouding: | Unshrouded |
| Mounting Type: | Surface Mount |
| Termination: | Solder |
| Fastening Type: | Push-Pull |
| Contact Length - Mating: | 0.240" (6.10mm) |
| Contact Length - Post: | - |
| Overall Contact Length: | - |
| Insulation Height: | 0.090" (2.29mm) |
| Contact Shape: | Square |
| Contact Finish - Mating: | Tin |
| Contact Finish Thickness - Mating: | 59.0µin (1.50µm) |
| Contact Finish - Post: | Tin |
| Contact Material: | Copper Alloy |
| Insulation Material: | Liquid Crystal Polymer (LCP), Glass Filled |
| Features: | Pick and Place |
| Operating Temperature: | - |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Black |
| Current Rating (Amps): | - |
| Voltage Rating: | - |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 756 |
Current price of 0713085654 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

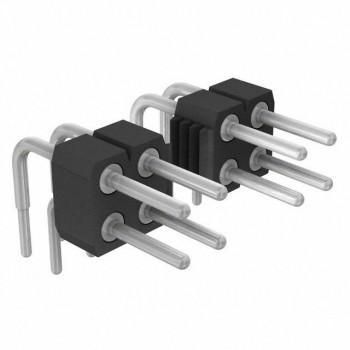

CONN HEADER R/A 58POS 2.54MM

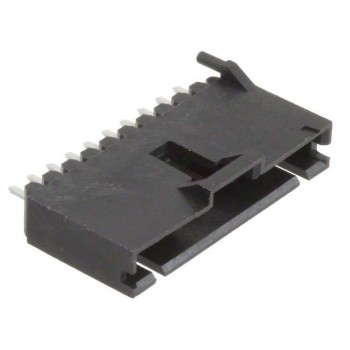

CONN HEADER VERT 10POS 2.54MM
