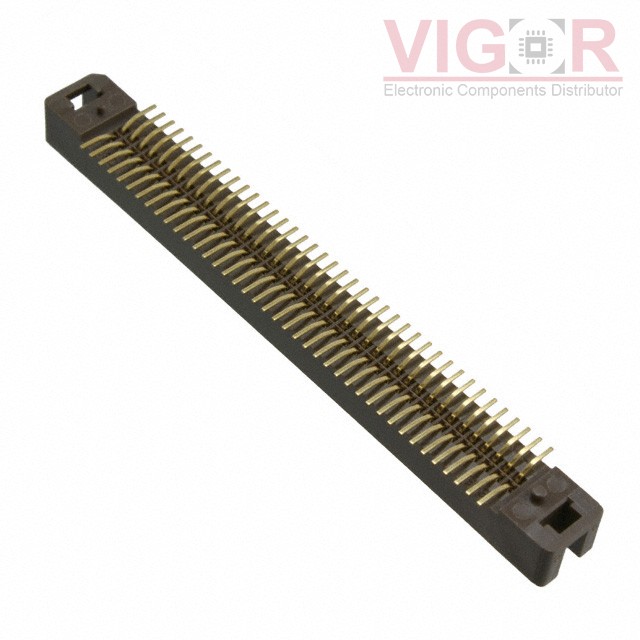

P50LE-080P1-SML-DA

Part No :: P50LE-080P1-SML-DA

Manufacturer: 3M

VIGOR # :: 3055501

Description: CONN HEADER SMD 80POS 1.27MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: P50LE-080P1-SML-DA PDF

Current price of P50LE-080P1-SML-DA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

P50LE-080P1-SML-DA Specifications

Type	Description
Series:	Pak 50, P50LE
Package:	Bulk
Part Status:	Active
Connector Type:	Plug
Contact Type:	Center Strip Contact
Pitch - Mating:	0.050" (1.27mm)
Number of Positions:	80
Number of Rows:	2
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.197" (5.00mm)
Contact Shape:	-
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	Flash
Contact Finish - Post:	Gold
Contact Material:	Phosphor Bronze
Insulation Material:	Polyphenylene Sulfide (PPS), Glass Filled
Features:	Board Guide
Operating Temperature:	-55°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Brown
Current Rating (Amps):	0.5A
Voltage Rating:	-

Please confirm the specifications of the products when ordering.
