0026481055

Product image
Product thumb
Part No :

0026481055

Manufacturer
Woodhead - Molex
VIGOR # :

3056355

Description
CONN HEADER VERT 5POS 3.96MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
0026481055 PDF
Country of origin
-
Date code
-
ads
0026481055 Specifications
Type Description
Series:KK396, 41671
Package:Bulk
Part Status:Active
Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.156" (3.96mm)
Number of Positions:5
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 1 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.450" (11.43mm)
Contact Length - Post:0.172" (4.37mm)
Overall Contact Length:0.750" (19.05mm)
Insulation Height:0.500" (12.70mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:60.0µin (1.52µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyester
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 524
Shipped from
HK warehouse
Expected Shipping Date
May 29 - Jun 02 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.6800 $0.68
10 $0.6410 $6.41
25 $0.5764 $14.41
50 $0.5126 $25.63
100 $0.4912 $49.12
250 $0.4484 $112.11
500 $0.4271 $213.55

Current price of 0026481055 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
HR31-5.08R-5PDL(72)

HR31-5.08R-5PDL(72)

CONN HEADER R/A 5POS 5.08MM

PBC24SAFN

PBC24SAFN

CONN HEADER VERT 24POS 2.54MM

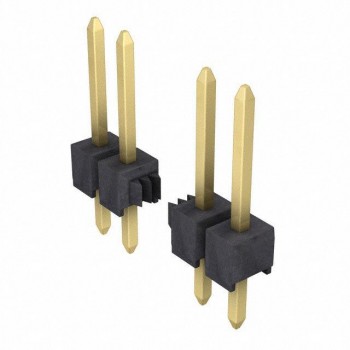

M20-9992045
