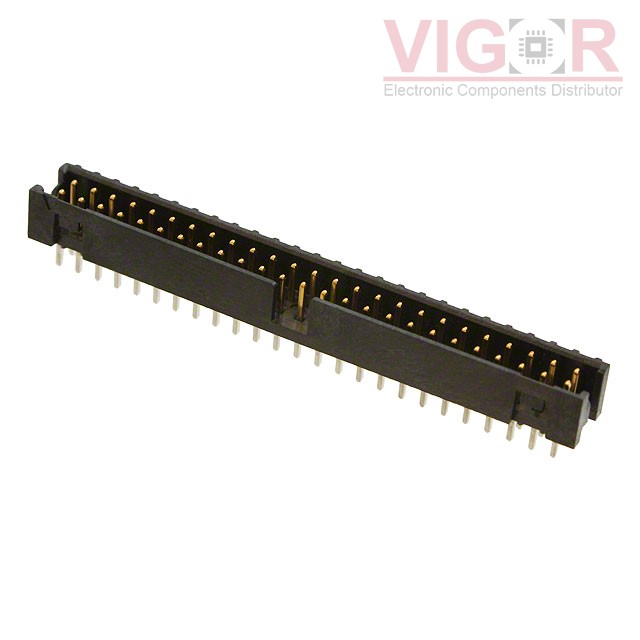

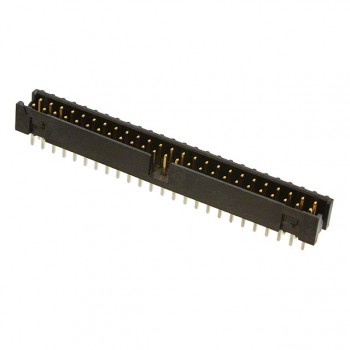

159250-6002

Part No :: 159250-6002

Manufacturer: 3M

Description: CONN HEADER VERT 50POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 159250-6002 PDF

Availability: 790 pieces

Unit Price: ~~$5.28000~~

Current price of 159250-6002 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

159250-6002 Specifications

Type	Description
Series:	159
Package:	Tray
Part Status:	Obsolete
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	50
Number of Rows:	2
Row Spacing - Mating:	0.079" (2.00mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	0.142" (3.61mm)
Contact Length - Post:	0.112" (2.84mm)
Overall Contact Length:	-
Insulation Height:	0.210" (5.33mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	15.0µin (0.38µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Liquid Crystal Polymer (LCP), Glass Filled
Features:	Keying Slot
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	1.25A
Voltage Rating:	150V
