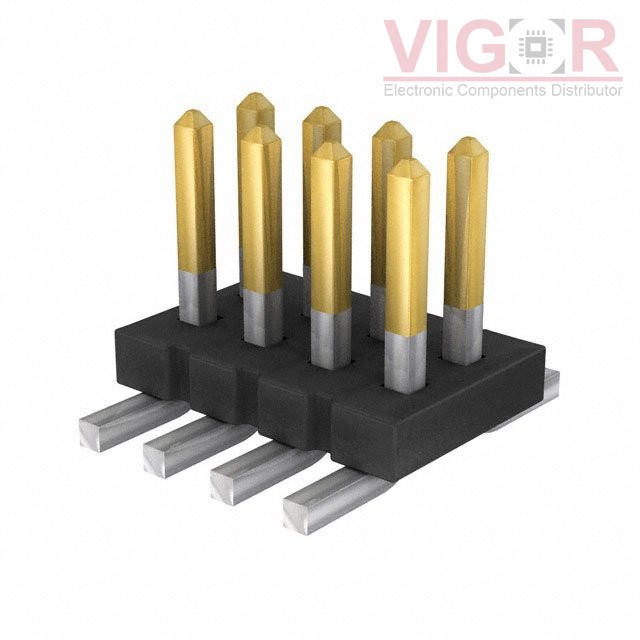

| Type | Description |
|---|---|
| Series: | FTS |
| Package: | Bulk |
| Part Status: | Active |
| Connector Type: | Header, Cuttable |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.050" (1.27mm) |
| Number of Positions: | 8 |
| Number of Rows: | 2 |
| Row Spacing - Mating: | 0.050" (1.27mm) |
| Number of Positions Loaded: | All |
| Style: | Board to Board or Cable |
| Shrouding: | Unshrouded |
| Mounting Type: | Surface Mount |
| Termination: | Solder |
| Fastening Type: | Push-Pull |
| Contact Length - Mating: | 0.120" (3.05mm) |
| Contact Length - Post: | - |
| Overall Contact Length: | - |
| Insulation Height: | 0.034" (0.86mm) |
| Contact Shape: | Square |
| Contact Finish - Mating: | Gold |
| Contact Finish Thickness - Mating: | 10.0µin (0.25µm) |
| Contact Finish - Post: | Tin |
| Contact Material: | Phosphor Bronze |
| Insulation Material: | Liquid Crystal Polymer (LCP) |
| Features: | - |
| Operating Temperature: | -55°C ~ 125°C |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Black |
| Current Rating (Amps): | 3.4A per Contact |
| Voltage Rating: | - |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 10 | ||
| 25 | ||
| 50 | ||
| 100 | ||
| 250 | ||
| 500 |
Current price of FTS-104-01-L-DV is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
