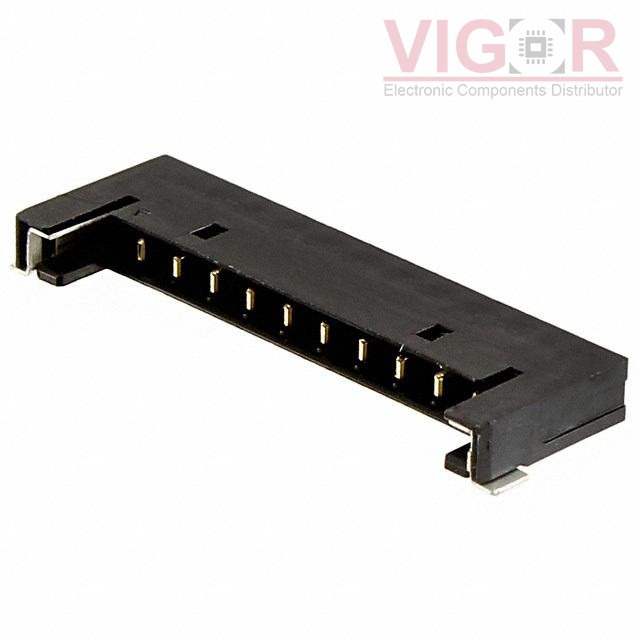

5040501091

Part No :: 5040501091

Manufacturer: Woodhead - Molex

VIGOR # :: 3059062

Description: CONN HEADER SMD R/A 10POS 1.5MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 5040501091 PDF

Country of origin: -

Date code: -

5040501091 Specifications

Type	Description
Series:	Pico-Lock 504050
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Blade
Pitch - Mating:	0.059" (1.50mm)
Number of Positions:	10
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.079" (2.00mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	3.94µin (0.100µm)
Contact Finish - Post:	Gold
Contact Material:	Copper Alloy
Insulation Material:	Polyamide (PA), Nylon
Features:	Solder Retention
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	Varies by Wire Gauge
Voltage Rating:	150V

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 16659

Shipped from

HK warehouse

Expected Shipping Date

Jan 21 - Jan 25 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.45~~	~~$1.45~~
2700	~~$0.90~~	~~$2 424.11~~
5400	~~$0.85~~	~~$4 605.82~~
8100	~~$0.83~~	~~$6 752.89~~

Current price of 5040501091 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

TSW-132-14-T-S

CONN HEADER VERT 32POS 2.54MM

103311-2

CONN HEADER R/A 14POS 2.54MM

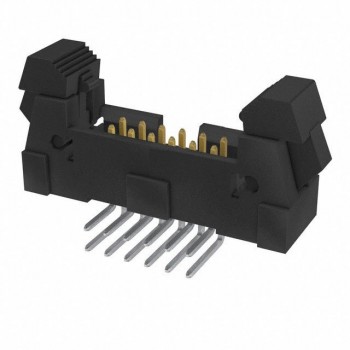

EHT-106-01-L-D-RA
