1-1735446-5

1-1735446-5

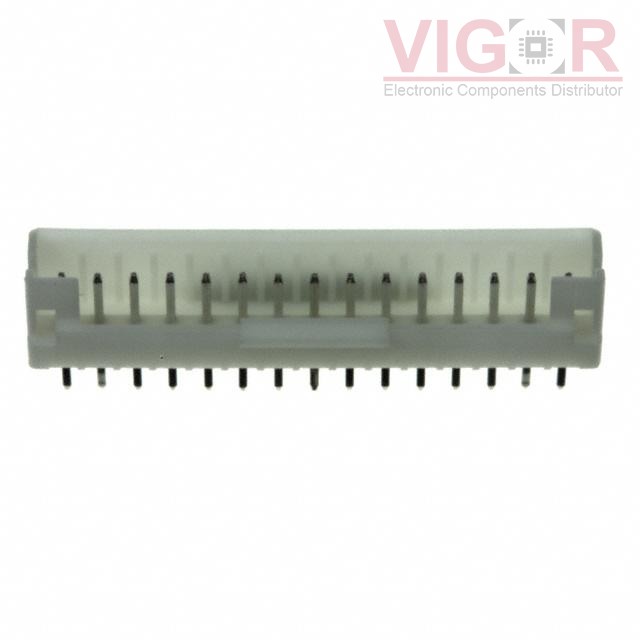

Image is for reference,
please contact us to get the real picture

Part No :

1-1735446-5

Manufacturer
TE Connectivity AMP Connectors
Description
CONN HEADER VERT 15POS 2MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Oct 07 - Oct 11 2025
DataSheet
1-1735446-5 PDF
Availability
8443 pieces
Unit Price
$0.56000

Current price of 1-1735446-5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1-1735446-5 Specifications
Type Description
Series:High Performance Interconnect (HPI)
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:15
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 3 Wall
Mounting Type:Through Hole
Termination:Press-Fit, Solder
Fastening Type:Locking Ramp
Contact Length - Mating:0.132" (3.35mm)
Contact Length - Post:0.134" (3.40mm)
Overall Contact Length:-
Insulation Height:0.239" (6.07mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic
Features:-
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):3A
Voltage Rating:250V
