0430450806

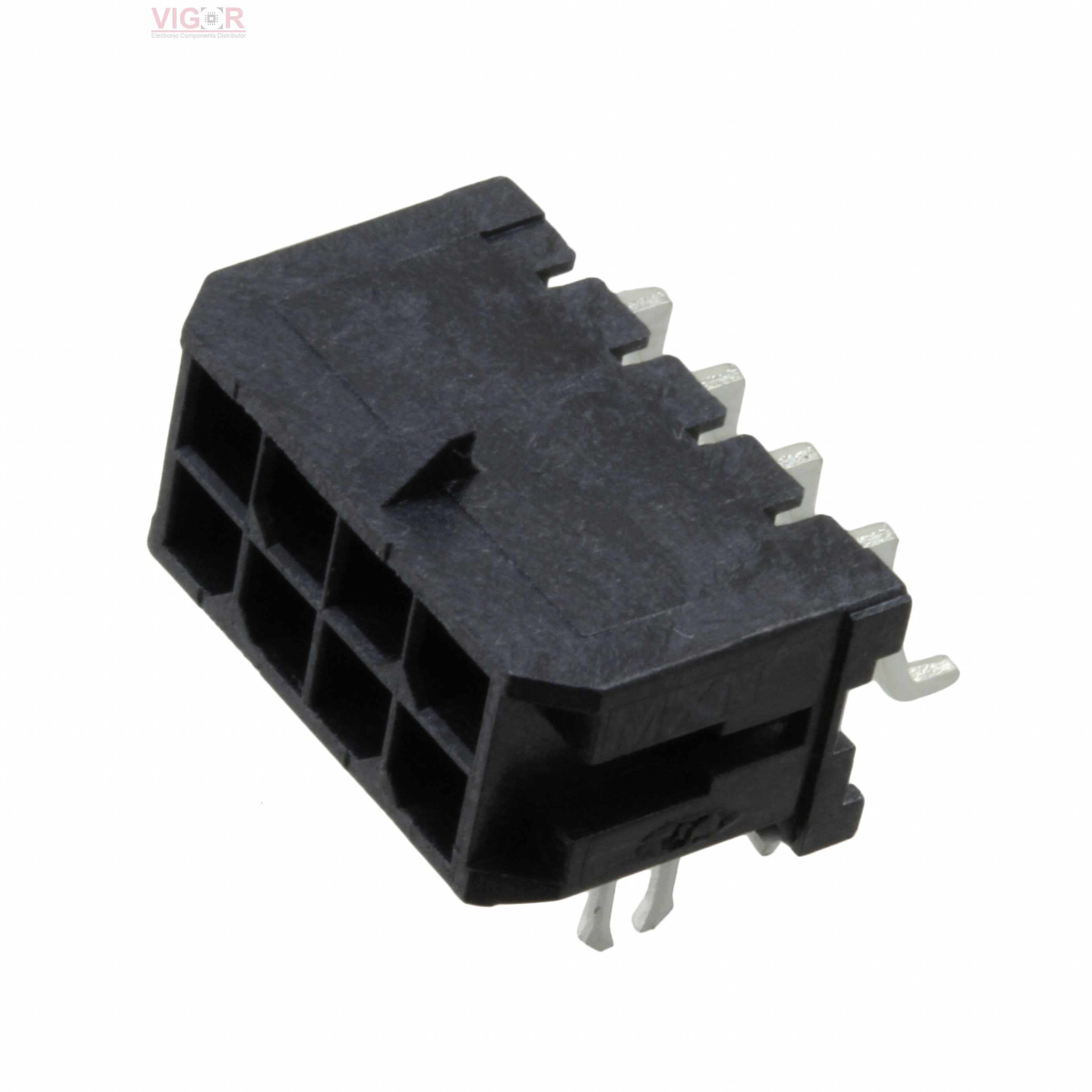

Product image
Product thumb
Part No :

0430450806

Manufacturer
Woodhead - Molex
VIGOR # :

3059707

Description
CONN HEADER SMD R/A 8POS 3MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
0430450806 PDF
Country of origin
-
Date code
-
ads
0430450806 Specifications
Type Description
Series:Micro-Fit 3.0 43045
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.118" (3.00mm)
Number of Positions:8
Number of Rows:2
Row Spacing - Mating:0.118" (3.00mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.290" (7.37mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:60.0µin (1.52µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
Features:Board Lock
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):8A
Voltage Rating:600V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 302
Shipped from
HK warehouse
Expected Shipping Date
Jan 04 - Jan 08 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $3.47 $3.47
200 $2.77 $554.80
400 $2.43 $970.90
600 $2.36 $1 414.74
1000 $2.01 $2 011.15
2000 $1.94 $3 883.60
5000 $1.80 $9 015.50

Current price of 0430450806 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

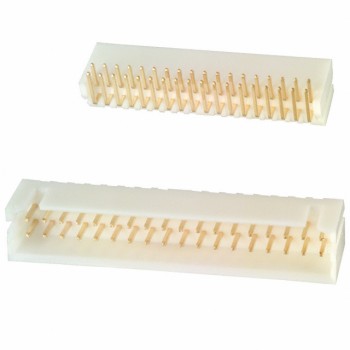

DF1B-36DP-2.5DS(01)

DF1B-36DP-2.5DS(01)

CONN HEADER R/A 36POS 2.5MM

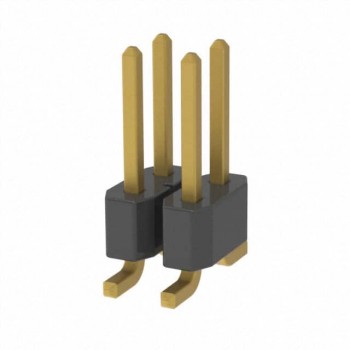

TSM-102-01-H-DV-P-TR

TSM-102-01-H-DV-P-TR

CONN HEADER SMD 4POS 2.54MM

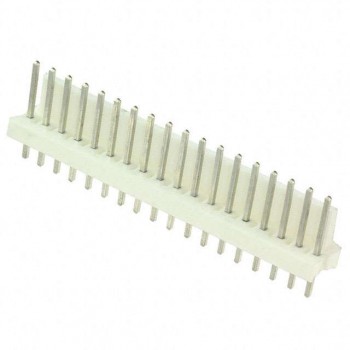

1-640454-8
