368312-1

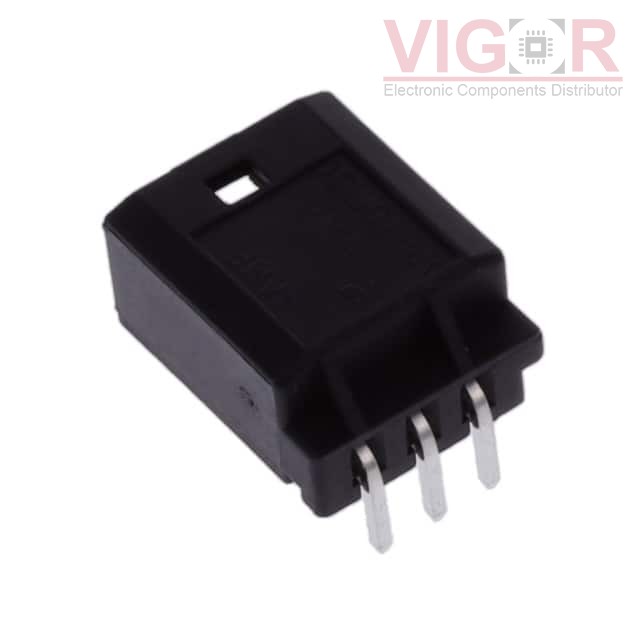

Product image
Product thumb
Part No :

368312-1

Manufacturer
TE Connectivity AMP Connectors
VIGOR # :

3060862

Description
CONN HEADER R/A 3POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
368312-1 PDF
Country of origin
-
Date code
-
ads
368312-1 Specifications
Type Description
Series:Micro Quadlok
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:3
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.264" (6.70mm)
Contact Length - Post:0.122" (3.10mm)
Overall Contact Length:-
Insulation Height:0.244" (6.20mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Bronze
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:Board Guide
Operating Temperature:-40°C ~ 120°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 7560
Shipped from
HK warehouse
Expected Shipping Date
Jan 22 - Jan 26 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.94 $0.94
10 $0.82 $8.25
25 $0.78 $19.40
50 $0.74 $37.19
100 $0.71 $71.14
250 $0.65 $161.69
500 $0.58 $291.03
1000 $0.52 $517.39
2500 $0.47 $1 172.22

Current price of 368312-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

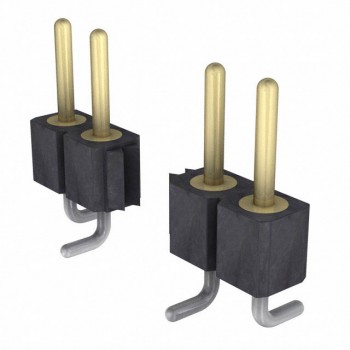

800-V3-032-30-001101

800-V3-032-30-001101

CONN HEADER SMD 32POS 2.54MM

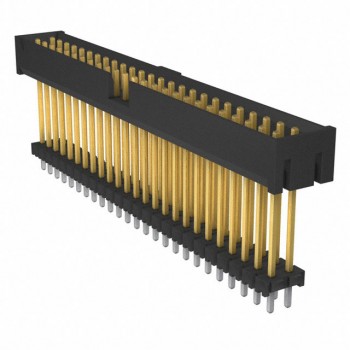

ZLTMM-125-74-S-D-588

ZLTMM-125-74-S-D-588

CONN HEADER VERT 50POS 2MM

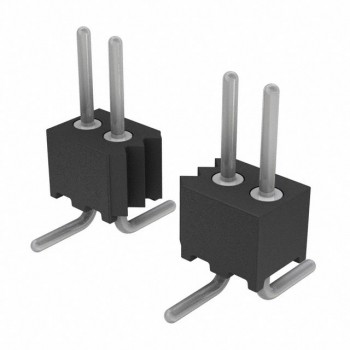

850-80-025-30-001101
