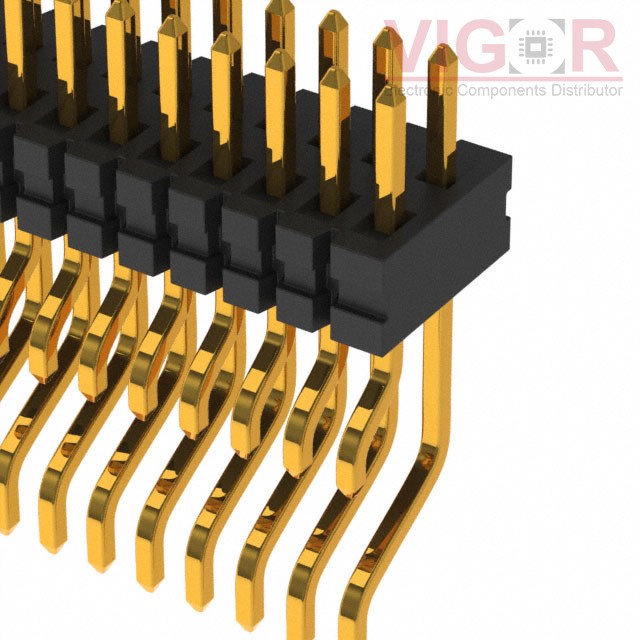

FTE-168-01-G-DH

Part No :: FTE-168-01-G-DH

Manufacturer: Samtec, Inc.

Description: CONN HEADER SMD R/A 136P 0.8MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: FTE-168-01-G-DH PDF

Availability: 0 pieces

Current price of FTE-168-01-G-DH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FTE-168-01-G-DH Specifications

Type	Description
Series:	FTE
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.031" (0.80mm)
Number of Positions:	136
Number of Rows:	2
Row Spacing - Mating:	0.047" (1.20mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Unshrouded
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.075" (1.90mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.120" (3.05mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Contact Finish - Post:	Gold
Contact Material:	Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	-
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	2.7A per Contact
Voltage Rating:	-

Please confirm the specifications of the products when ordering.
