75869-104LF

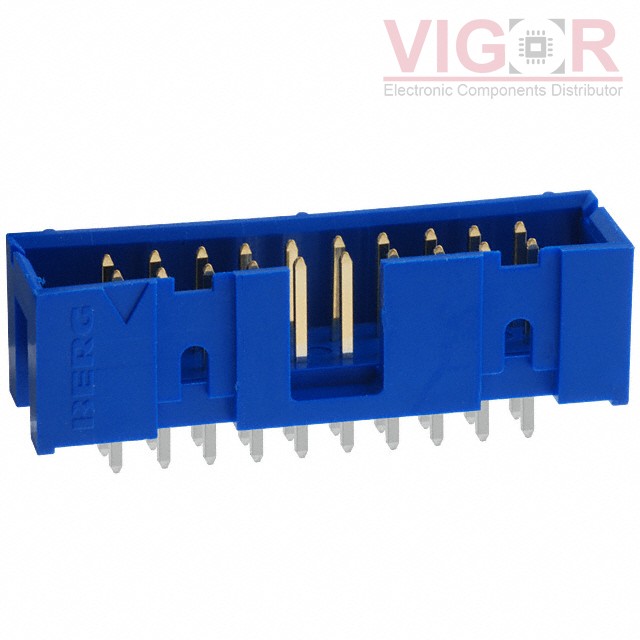

Product image
Product thumb
Part No :

75869-104LF

Manufacturer
Storage & Server IO (Amphenol ICC)
VIGOR # :

3061283

Description
CONN HEADER VERT 20POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
75869-104LF PDF
Country of origin
-
Date code
-
ads
75869-104LF Specifications
Type Description
Series:Quickie™
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:20
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.236" (6.00mm)
Contact Length - Post:0.120" (3.05mm)
Overall Contact Length:-
Insulation Height:0.377" (9.57mm)
Contact Shape:Square
Contact Finish - Mating:Gold, GXT™
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Thermoplastic, Glass Filled
Features:Keying Slot
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Blue
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 1701
Shipped from
HK warehouse
Expected Shipping Date
Dec 30 - Jan 03 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.45 $1.45
18 $1.27 $22.91
108 $1.10 $118.55
504 $0.90 $452.67
1008 $0.80 $804.77
5004 $0.70 $3 495.69
10008 $0.66 $6 641.81

Current price of 75869-104LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

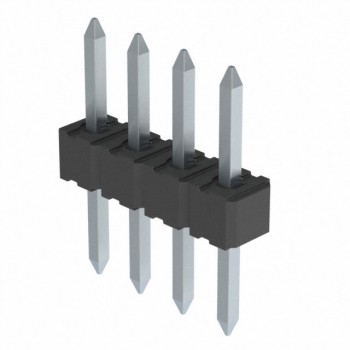

0022284041

0022284041

CONN HEADER VERT 4POS 2.54MM

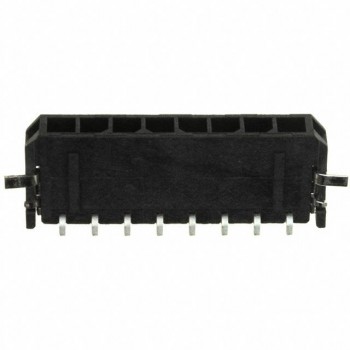

0436500813

0436500813

CONN HEADER SMD R/A 8POS 3MM

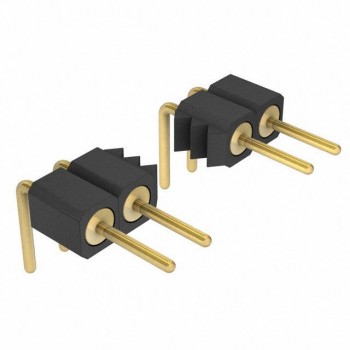

830-10-045-20-001101
