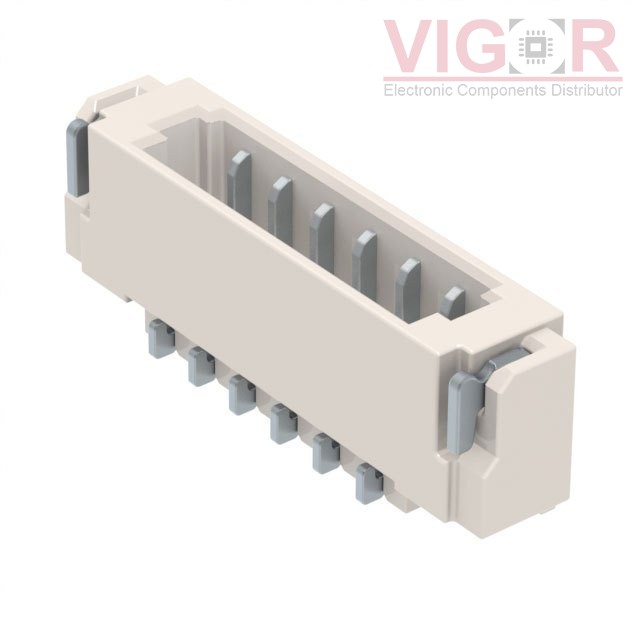

10144041-06011LF

Part No :: 10144041-06011LF

Manufacturer: Storage & Server IO (Amphenol ICC)

Description: CONN HEADER SMD R/A 6POS 0.8MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 10144041-06011LF PDF

Availability: 7524 pieces

Unit Price: ~~$0.54000~~

Current price of 10144041-06011LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

10144041-06011LF Specifications

Type	Description
Series:	Minitek® 0.80mm
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.031" (0.80mm)
Number of Positions:	6
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.069" (1.75mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Liquid Crystal Polymer (LCP), Halogen Free
Features:	Glow Wire Compliant, Solder Retention
Operating Temperature:	-25°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Cream
Current Rating (Amps):	1A
Voltage Rating:	30VAC
