PEC17SAGN

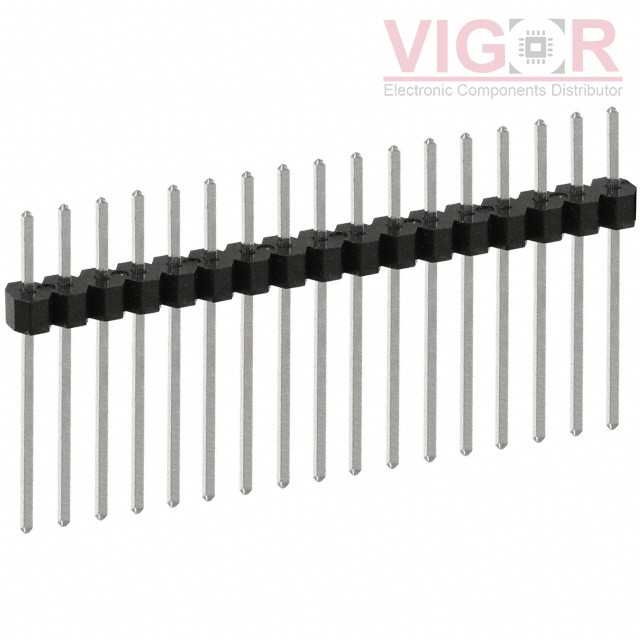

Product image
Product thumb
Part No :

PEC17SAGN

Manufacturer
Sullins Connector Solutions
VIGOR # :

3062165

Description
CONN HEADER VERT 17POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
PEC17SAGN PDF
Country of origin
-
Date code
-
ads
PEC17SAGN Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:17
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.230" (5.84mm)
Contact Length - Post:0.720" (18.29mm)
Overall Contact Length:1.050" (26.67mm)
Insulation Height:0.100" (2.54mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Polybutylene Terephthalate (PBT)
Features:-
Operating Temperature:-65°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Apr 12 - Apr 16 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.2000 $2.20
10 $1.9990 $19.99
25 $1.8768 $46.92
50 $1.7952 $89.76
100 $1.7136 $171.36
250 $1.5504 $387.60
500 $1.4280 $714.00

Current price of PEC17SAGN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

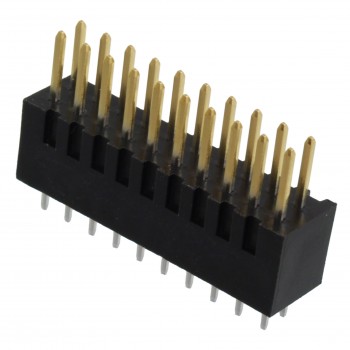

HIF3E-20PA-2.54DSA(71)

HIF3E-20PA-2.54DSA(71)

CONN HEADER VERT 20POS 2.54MM

4-103322-0-29

4-103322-0-29

CONN HEADER VERT 58POS 2.54MM

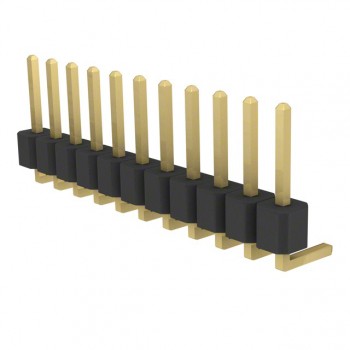

PRPC011SBAN-M71RC
