2-640504-2

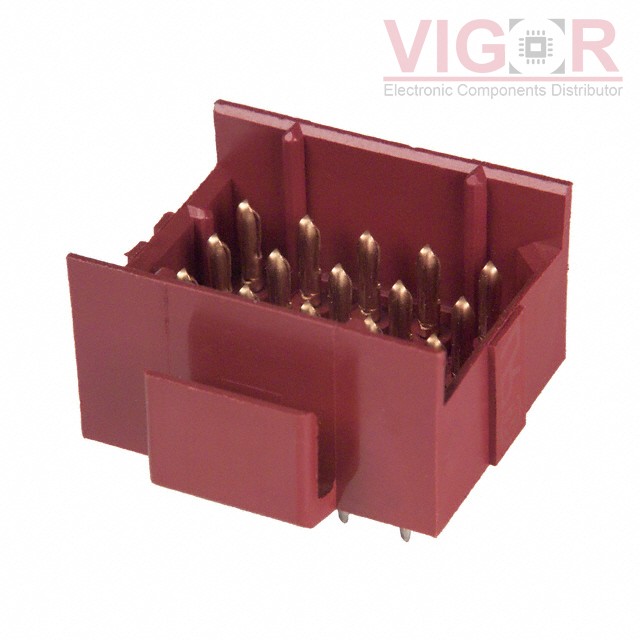

Image is for reference,
please contact us to get the real picture

Part No :: 2-640504-2

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HEADER VERT 20POS 4.2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 2-640504-2 PDF

Availability: 0 pieces

Unit Price: ~~$13.97693~~

Current price of 2-640504-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2-640504-2 Specifications

Type	Description
Series:	MR (Miniature Rectangular)
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.165" (4.20mm)
Number of Positions:	20
Number of Rows:	4
Row Spacing - Mating:	0.165" (4.20mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Latch Lock
Contact Length - Mating:	0.220" (5.59mm)
Contact Length - Post:	0.150" (3.81mm)
Overall Contact Length:	-
Insulation Height:	0.531" (13.50mm)
Contact Shape:	Circular
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Polyamide (PA), Nylon
Features:	-
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black, Red
Current Rating (Amps):	6A
Voltage Rating:	250VAC
