5-104894-5

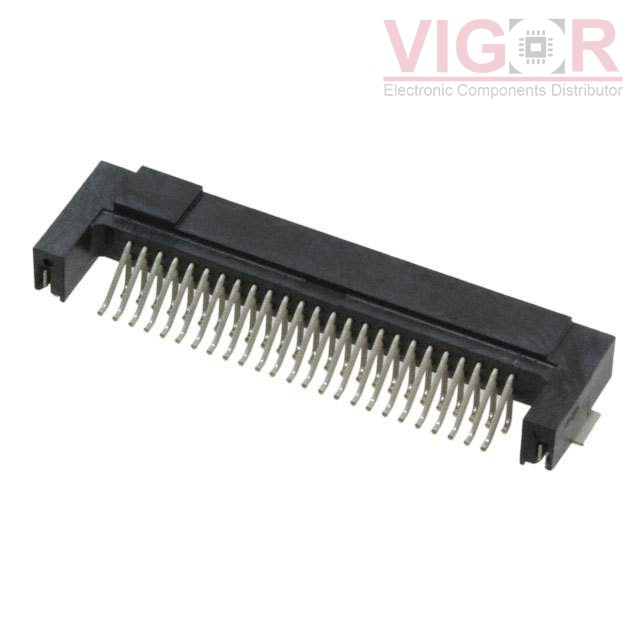

Image is for reference,
please contact us to get the real picture

Part No :: 5-104894-5

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HEADER SMD R/A 50POS 1.27MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 5-104894-5 PDF

Availability: 394 pieces

Unit Price: ~~$10.31000~~

Current price of 5-104894-5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5-104894-5 Specifications

Type	Description
Series:	AMPMODU 50/50 Grid
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.050" (1.27mm)
Number of Positions:	50
Number of Rows:	2
Row Spacing - Mating:	0.050" (1.27mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.213" (5.40mm)
Contact Shape:	Circular
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	Board Lock, Solder Retention
Operating Temperature:	-65°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	0.5A per Contact
Voltage Rating:	-
