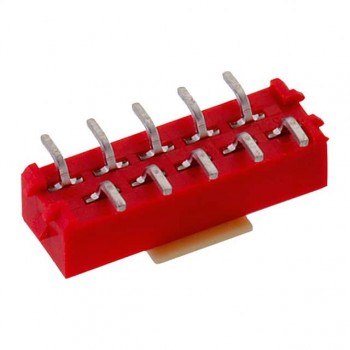

690357282276

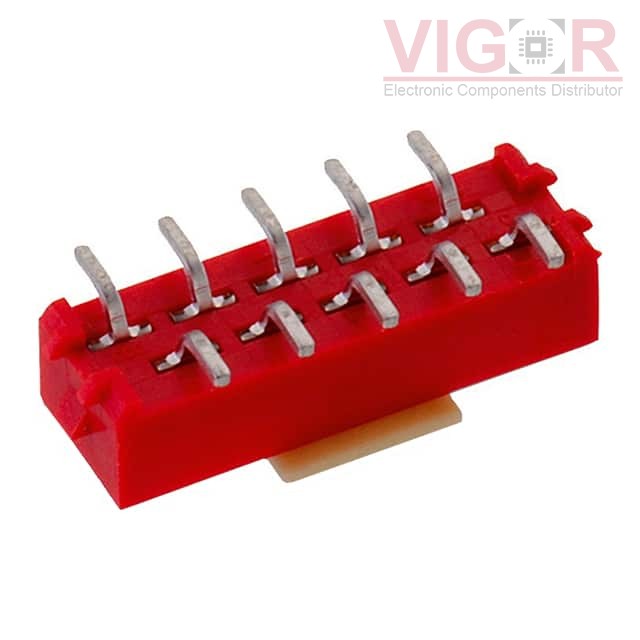

Image is for reference,
please contact us to get the real picture

Part No :: 690357282276

Manufacturer: Würth Elektronik Midcom

Description: WR-MM MALE SMT CONNECTOR

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 690357282276 PDF

Availability: 2000 pieces

Unit Price: ~~$2.04000~~

Current price of 690357282276 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

690357282276 Specifications

Type	Description
Series:	WR-MM
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	22
Number of Rows:	2
Row Spacing - Mating:	0.059" (1.50mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.142" (3.60mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Polyamide (PA6T), Nylon 6T
Features:	Pick and Place
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Red
Current Rating (Amps):	1.5A per Contact
Voltage Rating:	100VAC

Please confirm the specifications of the products when ordering.
