| Type | Description |
|---|---|
| Series: | - |
| Package: | Bulk |
| Part Status: | Discontinued at Digi-Key |

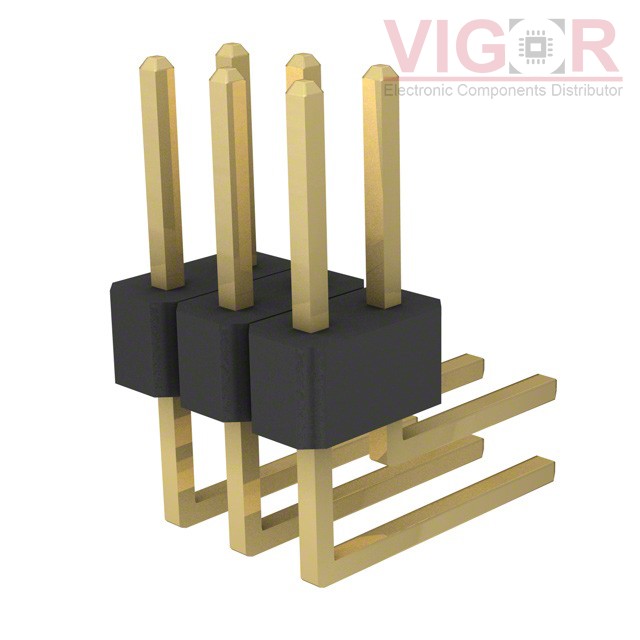

| Connector Type: | Header, Breakaway |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.100" (2.54mm) |
| Number of Positions: | 6 |
| Number of Rows: | 2 |
| Row Spacing - Mating: | 0.100" (2.54mm) |
| Number of Positions Loaded: | All |
| Style: | Board to Board or Cable |
| Shrouding: | Unshrouded |
| Mounting Type: | Through Hole, Right Angle |
| Termination: | Solder |
| Fastening Type: | Push-Pull |
| Contact Length - Mating: | 0.230" (5.84mm) |
| Contact Length - Post: | 0.220" (5.58mm) |
| Overall Contact Length: | - |
| Insulation Height: | 0.197" (5.00mm) |
| Contact Shape: | Square |
| Contact Finish - Mating: | Gold |
| Contact Finish Thickness - Mating: | Flash |
| Contact Finish - Post: | Gold |
| Contact Material: | Brass |
| Insulation Material: | Polybutylene Terephthalate (PBT) |
| Features: | - |
| Operating Temperature: | -40°C ~ 105°C |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Black |
| Current Rating (Amps): | 3A per Contact |
| Voltage Rating: | - |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 10 | ||
| 100 | ||
| 500 | ||
| 1000 | ||
| 5000 | ||
| 10000 |
Current price of PRPC003DBBN-M71RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
