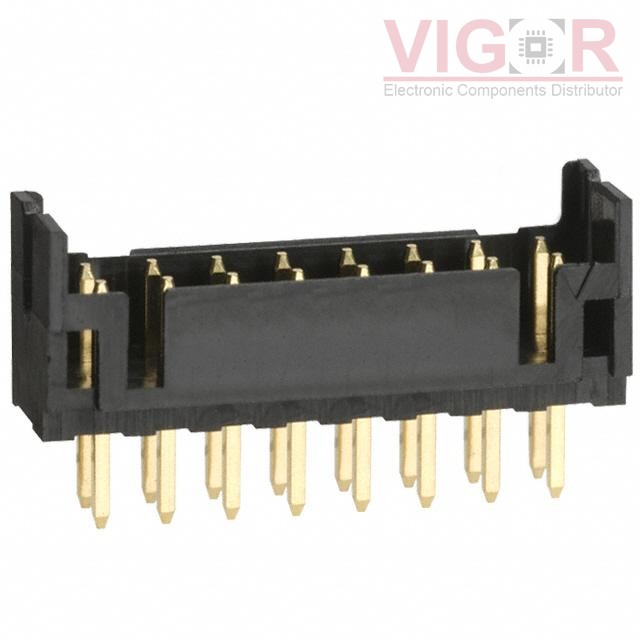

DF11-16DP-2DSA(01)

Image is for reference,
please contact us to get the real picture

Part No :: DF11-16DP-2DSA(01)

Manufacturer: Hirose

Description: CONN HEADER VERT 16POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: DF11-16DP-2DSA(01) PDF

Availability: 6993 pieces

Unit Price: ~~$1.58000~~

Current price of DF11-16DP-2DSA(01) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DF11-16DP-2DSA(01) Specifications

Type	Description
Series:	DF11
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	16
Number of Rows:	2
Row Spacing - Mating:	0.079" (2.00mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	0.118" (3.00mm)
Contact Length - Post:	0.118" (3.00mm)
Overall Contact Length:	0.299" (7.60mm)
Insulation Height:	0.260" (6.60mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	8.00µin (0.203µm)
Contact Finish - Post:	-
Contact Material:	Brass
Insulation Material:	Polyamide (PA), Nylon
Features:	-
Operating Temperature:	-30°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	2A
Voltage Rating:	250V
