2-966658-2

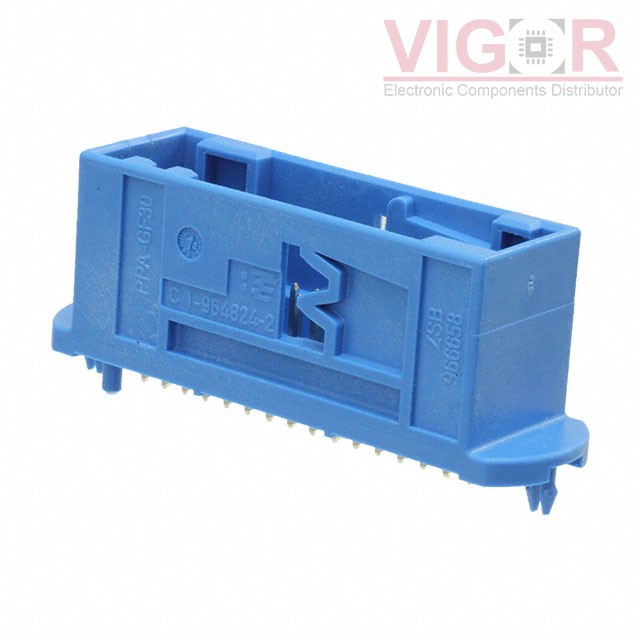

Image is for reference,
please contact us to get the real picture

Part No :: 2-966658-2

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HEADER VERT 32POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 2-966658-2 PDF

Availability: 253 pieces

Unit Price: ~~$2.25000~~

Current price of 2-966658-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2-966658-2 Specifications

Type	Description
Series:	AMPMODU Mod II
Package:	Tray
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	32
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	0.268" (6.80mm)
Contact Length - Post:	0.098" (2.50mm)
Overall Contact Length:	0.520" (13.21mm)
Insulation Height:	0.795" (20.20mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	78.7µin (2.00µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyphthalamide (PPA), Glass Filled
Features:	Board Lock
Operating Temperature:	-40°C ~ 110°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Blue
Current Rating (Amps):	-
Voltage Rating:	12V

Please confirm the specifications of the products when ordering.
