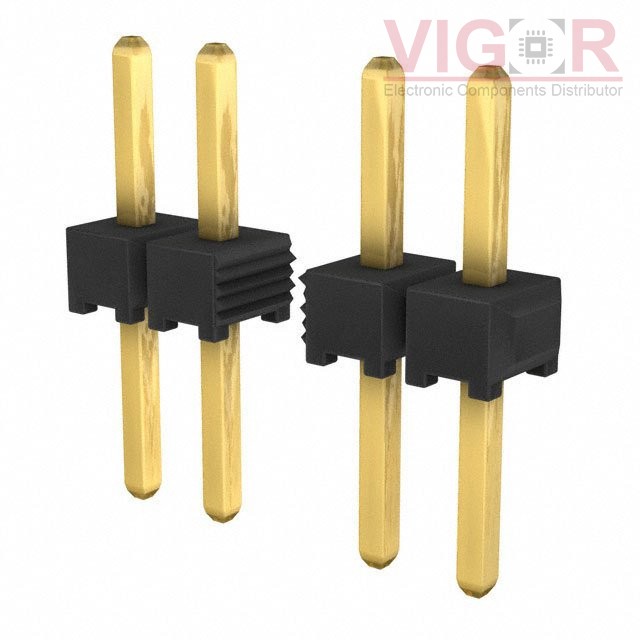

TMM-124-01-G-S

Part No :: TMM-124-01-G-S

Manufacturer: Samtec, Inc.

Description: CONN HEADER VERT 24POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: TMM-124-01-G-S PDF

Availability: 0 pieces

Unit Price: ~~$4.06000~~

Current price of TMM-124-01-G-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TMM-124-01-G-S Specifications

Type	Description
Series:	TMM
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	24
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.126" (3.20mm)
Contact Length - Post:	0.138" (3.50mm)
Overall Contact Length:	0.323" (8.20mm)
Insulation Height:	0.059" (1.50mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	20.0µin (0.51µm)
Contact Finish - Post:	Gold
Contact Material:	Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	-
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Black
Current Rating (Amps):	3.2A per Contact
Voltage Rating:	-
