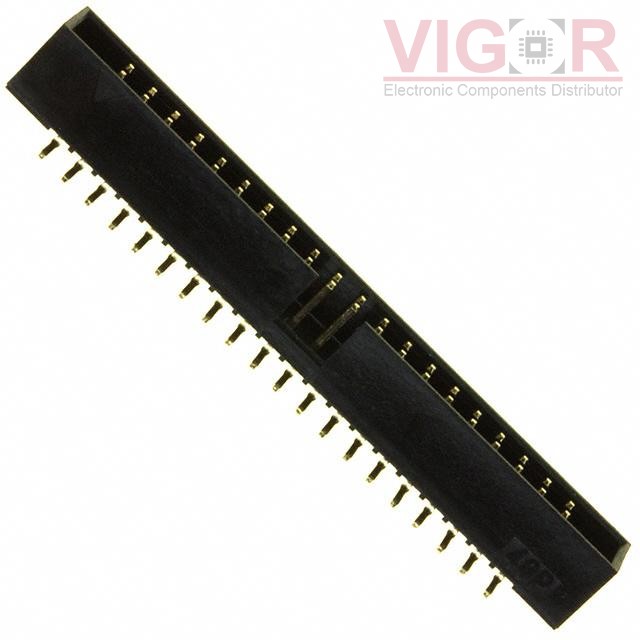

SBH21-NBPN-D20-SM-BK

Part No :: SBH21-NBPN-D20-SM-BK

Manufacturer: Sullins Connector Solutions

VIGOR # :: 3065050

Description: CONN HEADER SMD 40POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: SBH21-NBPN-D20-SM-BK PDF

Country of origin: -

Date code: -

SBH21-NBPN-D20-SM-BK Specifications

Type	Description
Series:	SBH21
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	40
Number of Rows:	2
Row Spacing - Mating:	0.079" (2.00mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.220" (5.60mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	Flash
Contact Finish - Post:	Gold
Contact Material:	Brass
Insulation Material:	Polyamide (PA), Nylon
Features:	Keying Slot
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	2A
Voltage Rating:	-
