2215-2X20G00S/2.3/3.0B

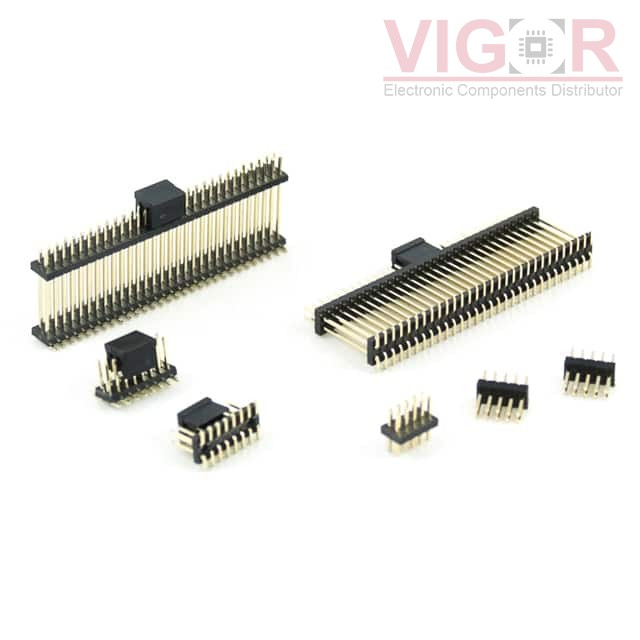

Image is for reference,
please contact us to get the real picture

Part No :: 2215-2X20G00S/2.3/3.0B

Manufacturer: Oupiin

Description: PIN HEADER, DOUBLE ROW, 40 PIN,

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 2215-2X20G00S/2.3/3.0B PDF

Availability: 0 pieces

Unit Price: ~~$1.56000~~

Current price of 2215-2X20G00S/2.3/3.0B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2215-2X20G00S/2.3/3.0B Specifications

Type	Description
Series:	2215
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.050" (1.27mm)
Number of Positions:	40
Number of Rows:	2
Row Spacing - Mating:	0.136" (3.45mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.118" (3.00mm)
Contact Length - Post:	0.091" (2.30mm)
Overall Contact Length:	0.248" (6.30mm)
Insulation Height:	0.039" (1.00mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	Flash
Contact Finish - Post:	Gold
Contact Material:	Brass
Insulation Material:	Polyamide (PA6T), Nylon 6T
Features:	-
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	1A
Voltage Rating:	-

Please confirm the specifications of the products when ordering.
