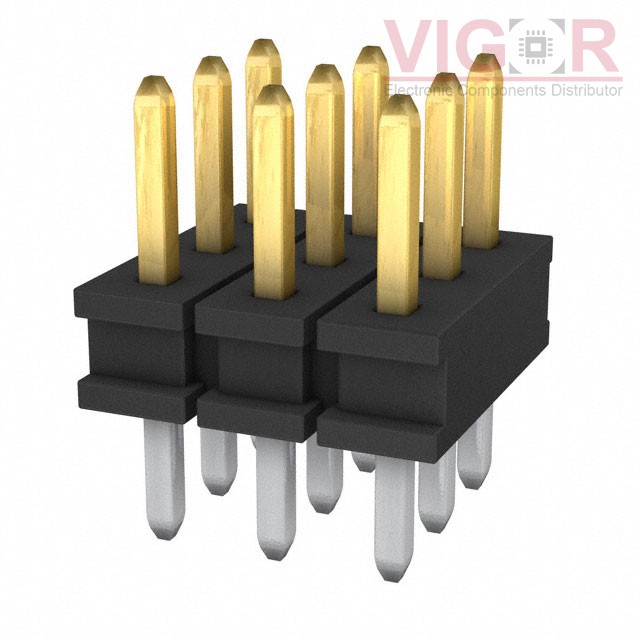

TMMH-103-01-L-T

Image is for reference,
please contact us to get the real picture

Part No :: TMMH-103-01-L-T

Manufacturer: Samtec, Inc.

Description: CONN HEADER VERT 9POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: TMMH-103-01-L-T PDF

Availability: 164 pieces

Unit Price: ~~$1.17000~~

Current price of TMMH-103-01-L-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TMMH-103-01-L-T Specifications

Type	Description
Series:	TMMH
Package:	Bulk
Part Status:	Active
Connector Type:	Header, Cuttable
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	9
Number of Rows:	3
Row Spacing - Mating:	0.079" (2.00mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.126" (3.20mm)
Contact Length - Post:	0.097" (2.47mm)
Overall Contact Length:	0.302" (7.67mm)
Insulation Height:	0.079" (2.00mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	-
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-

Please confirm the specifications of the products when ordering.
